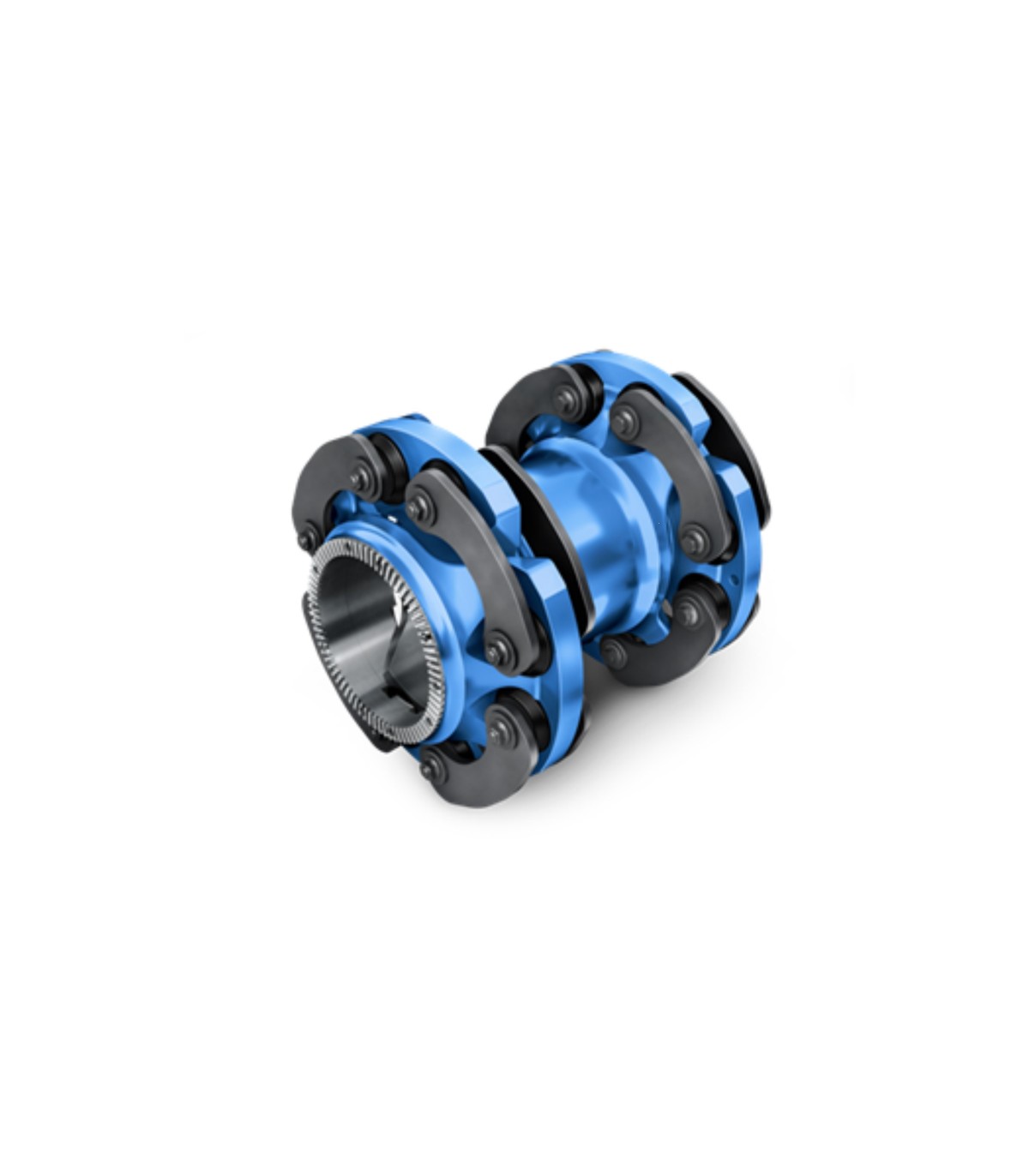

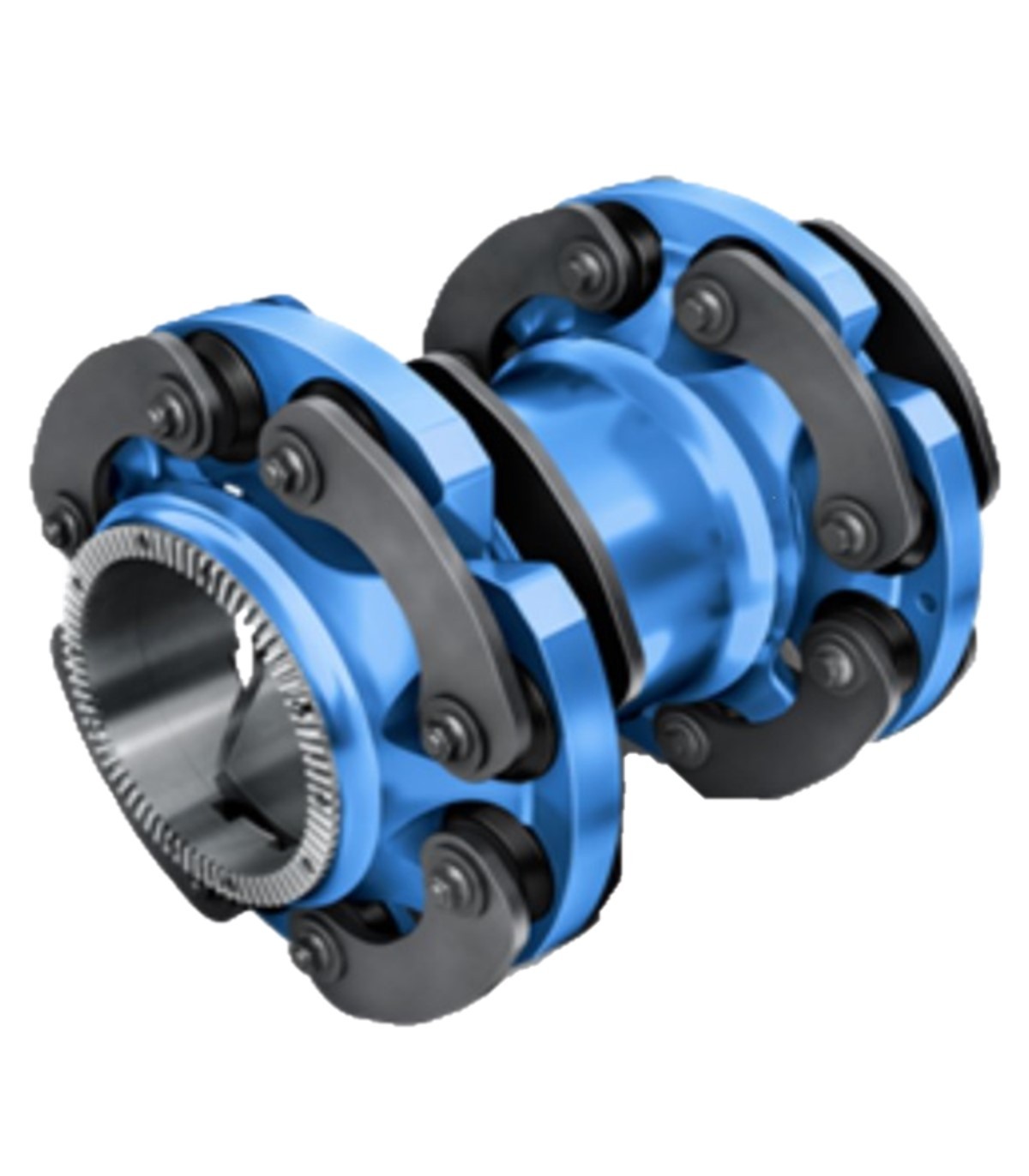

Railway Coupling GKG Cardan Joint Coupling
Railway Coupling GKG Cardan Joint Coupling
Brand:
Flender

Railway Coupling GKG Cardan Joint Coupling

Brand:
Flender
Hydrodynamic Coupling FLUDEX Fluid Coupling
Railway Coupling LBK Link Coupling
Model: GKG

FLENDER GKG® cardan couplings are elastic, double-jointed output couplings used to compensate for primary suspension misalignments in the bogie with full torque transmission between the gear unit and the powered wheel set shaft. They permit very large shaft displacements and allow major misalignments between the axle and the gear unit while generating only very slight reaction forces.

Make an Enquiry
Add to wishlist
Share
விவரம்
  • Elastic, double-jointed cardan coupling
  • Nominal torque range up to TKN = 5,861 Nm with 5 sizes
  • Temperature range: from –30 °C to +70 °C
  • Long service life of up to one million kilometers of vehicle travel
  • Spherical rubber elements permit very large shaft displacements and allow major misalignments between the axle and the gear unit
  • Low reaction forces
Product Details
GKG

Data sheet

Model
GKG
