Model: SIPEX

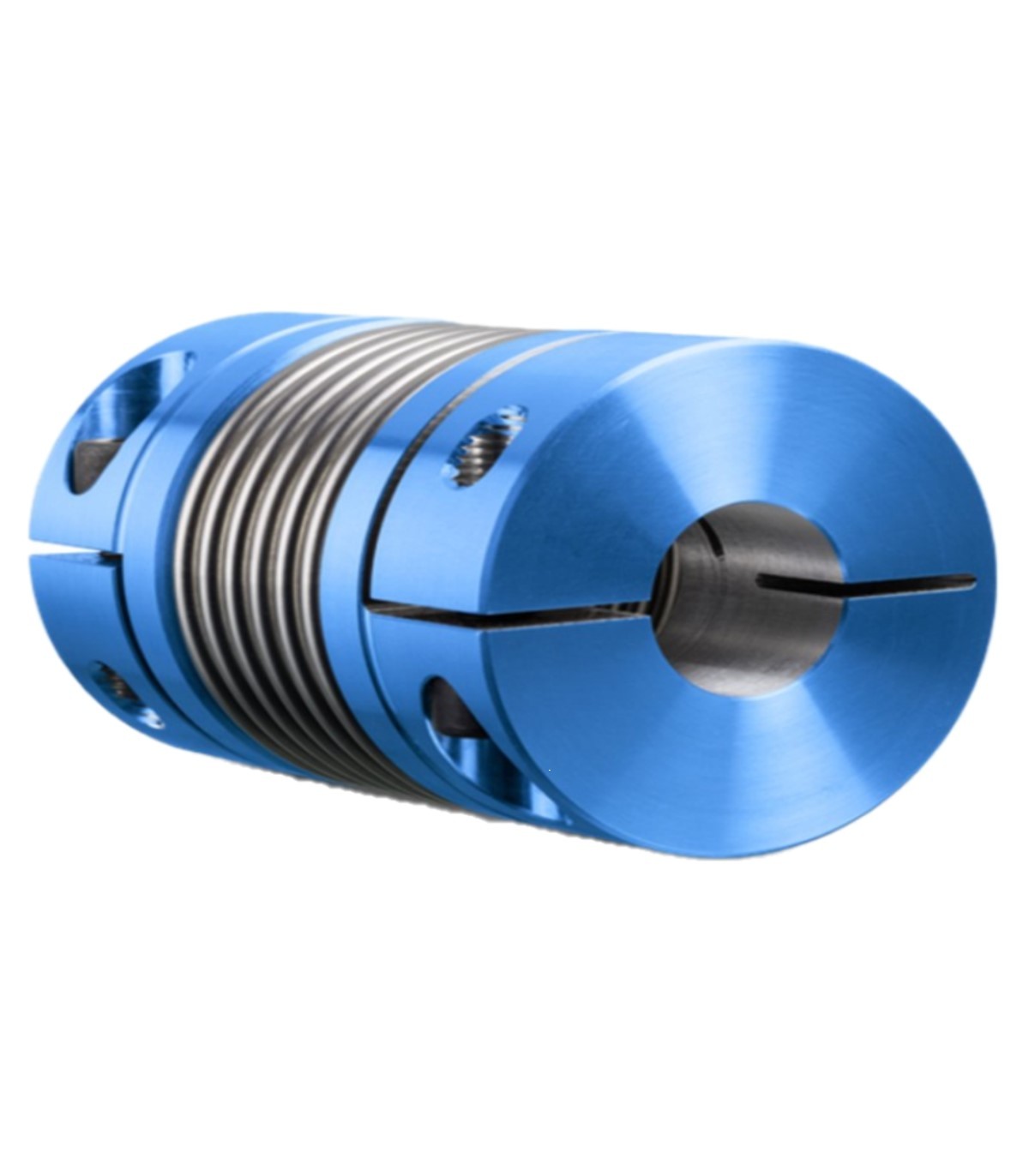

The SIPEX coupling is made up of two aluminum hubs and stainless steel bellows. Its metal bellows compensate for axial, radial and angular misalignments with only low restoring forces.

Make an Enquiry
Add to wishlist
Share
விவரம்
  • Backlash-free and torsion-resistant metal bellow coupling
  • Nominal torque range from TKN = 0.1 Nm to 5,000 Nm with 20 sizes
  • Temperature range: from –30 °C to +120 °C
  • Large variety of design options for maximum flexibility
  • Rotational speed: max. 15,000 rpm
  • Compensation for shaft misalignments
  • Low moment of inertia
  • Suitable for highly dynamic applications
  • Torsionally stiff, maintenance- and wear-free
Product Details
SIPEX

Data sheet

Model
SIPEX
