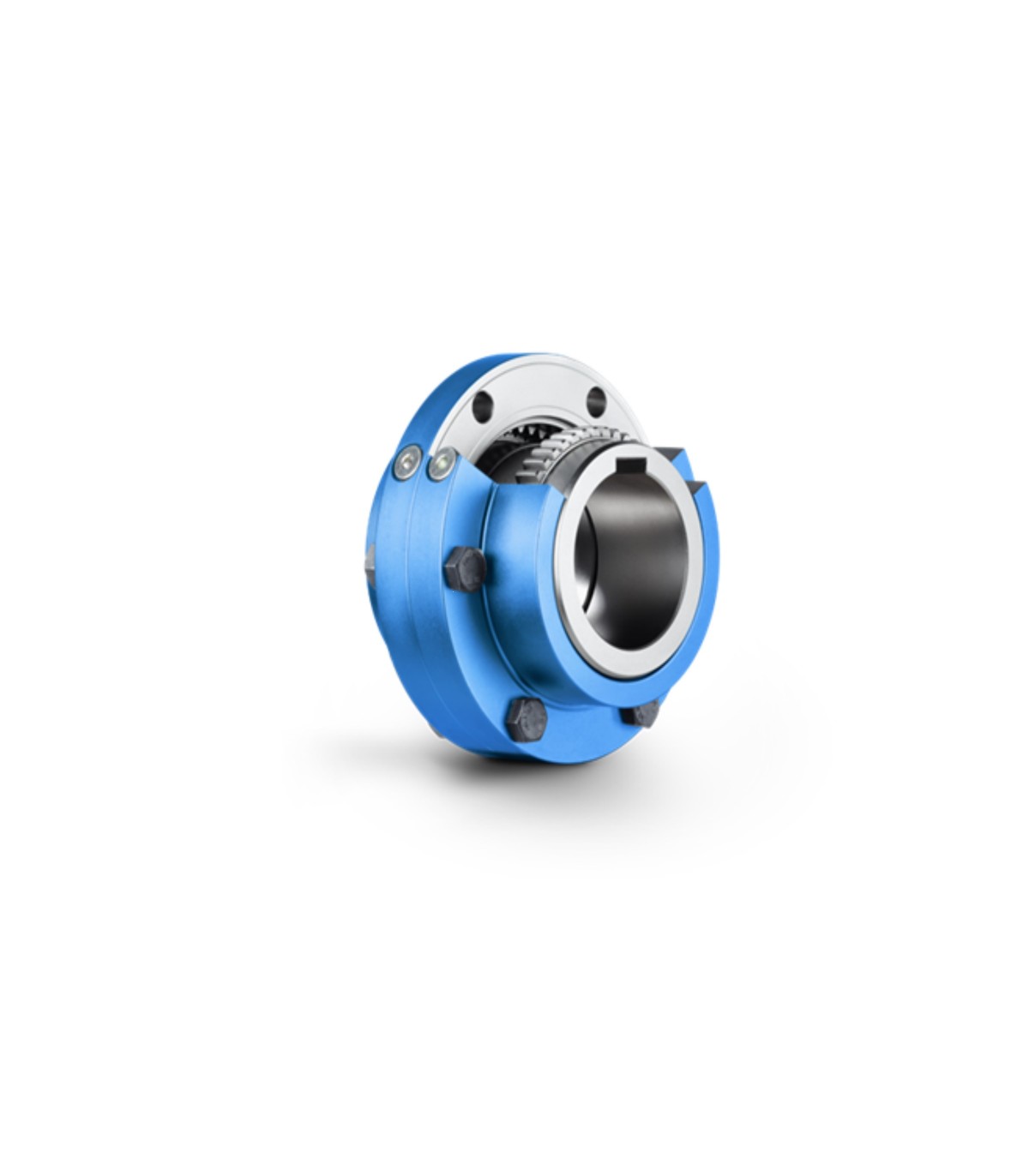

Model: ZAPEX ZN

ZAPEX ZN® couplings connect machine shafts and compensate for angular and radial misalignment. ZAPEX gear couplings from the ZN series are made of high-quality quenched and tempered steel and are manufactured according to the modular construction system.

Make an Enquiry
Add to wishlist
Share
விவரம்
  • Double-jointed gear coupling
  • Nominal torque range from TKN = 1,020 Nm up to 162,500 Nm with 12 sizes
  • Temperature range: from –20 °C to +80 °C
  • Long service life and minimal maintenance requirements as a result of reliable grease lubrication of the gear teeth
  • Small dimensions, low weight and low mass moments of inertia are achieved by means of an intelligent design and combination of materials
  • Large safety reserves even at high shock loads
  • Maximum operational reliability through optimal tooth shape and use of high-quality materials
  • Suitable for horizontal mounting and, with a special design, for vertical mounting
  • Suitable for use in potentially explosive environments; certified according to 2014/34/EU (ATEX)
Product Details
ZAPEX ZN

Data sheet

Model
ZAPEX ZN
