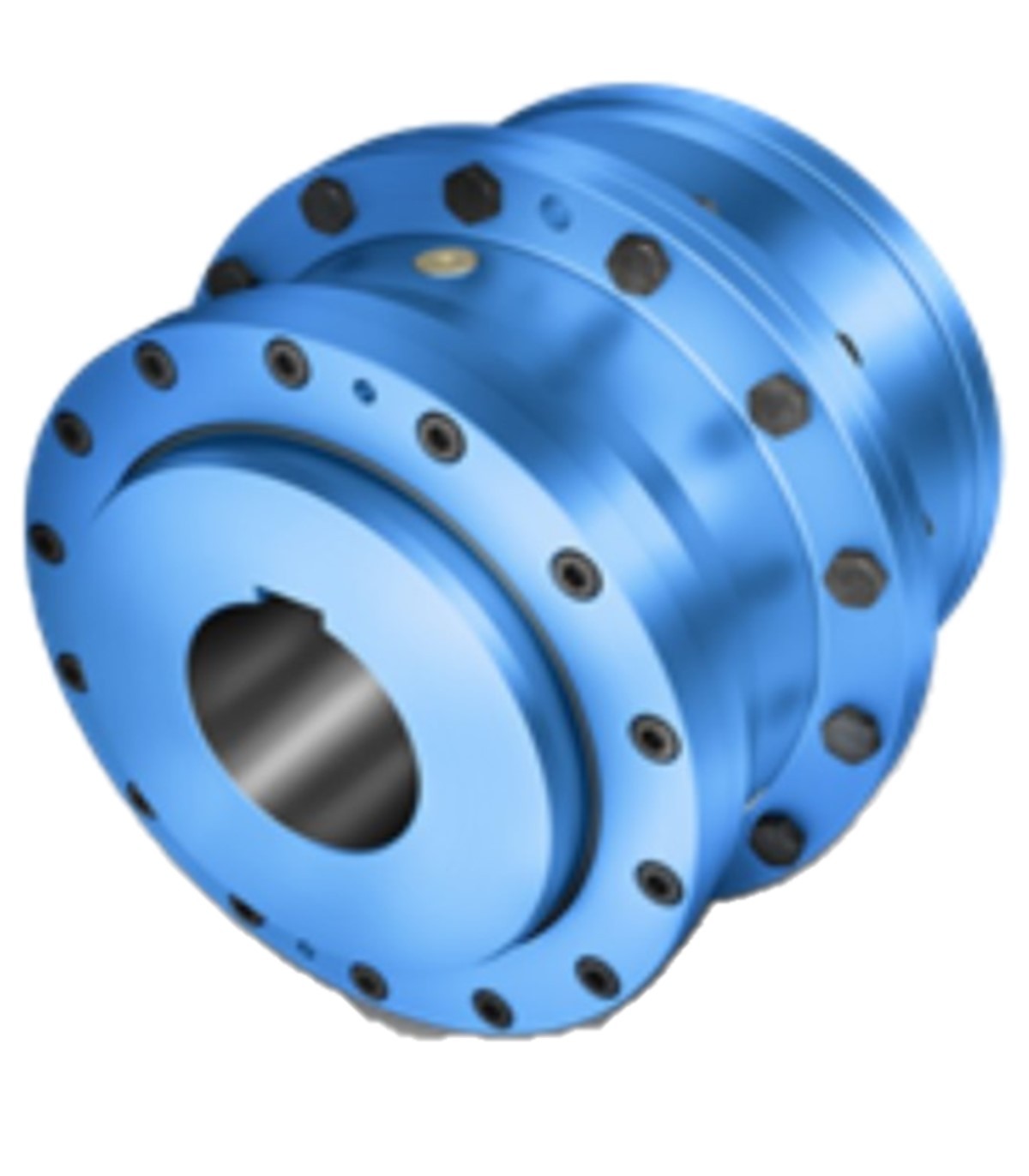

Torsionally Rigid Coupling ZAPEX ZW Gear Coupling
Torsionally Rigid Coupling ZAPEX ZW Gear Coupling
Brand:
Flender

Torsionally Rigid Coupling ZAPEX ZW Gear Coupling

Brand:
Flender
Highly Flexible Coupling ELPEX-S Rubber Disk Coupling
Torsionally Rigid Coupling ZAPEX ZN Gear Coupling
Model: ZAPEX ZW

The double-jointed gear couplings from the ZAPEX ZW® series compensate for angular, parallel and axial misalignment of shafts. They are particularly suitable for use under rough operating conditions. In addition to the standard series, couplings up to 13,500,000 Nm can be supplied.

Make an Enquiry
Add to wishlist
Share
விவரம்
  • Double-jointed gear coupling
  • Nominal torque range from TKN = 1,300 Nm up to 7,200,000 Nm with 31 sizes
  • Temperature range: from –20 °C to +80 °C
  • Low restoring forces in the case of shaft misalignment
  • Suitable for both directions of rotation (reversing operation) and vertical installation
  • Long service life and minimal maintenance requirements
  • Small dimensions owing to compact design for use in confined spaces
  • Can be used for high shock loads; with large safety reserves
  • Suitable for use in potentially explosive environments; certified according to 2014/34/EU (ATEX)
Product Details
ZAPEX ZW

Data sheet

Model
ZAPEX ZW
