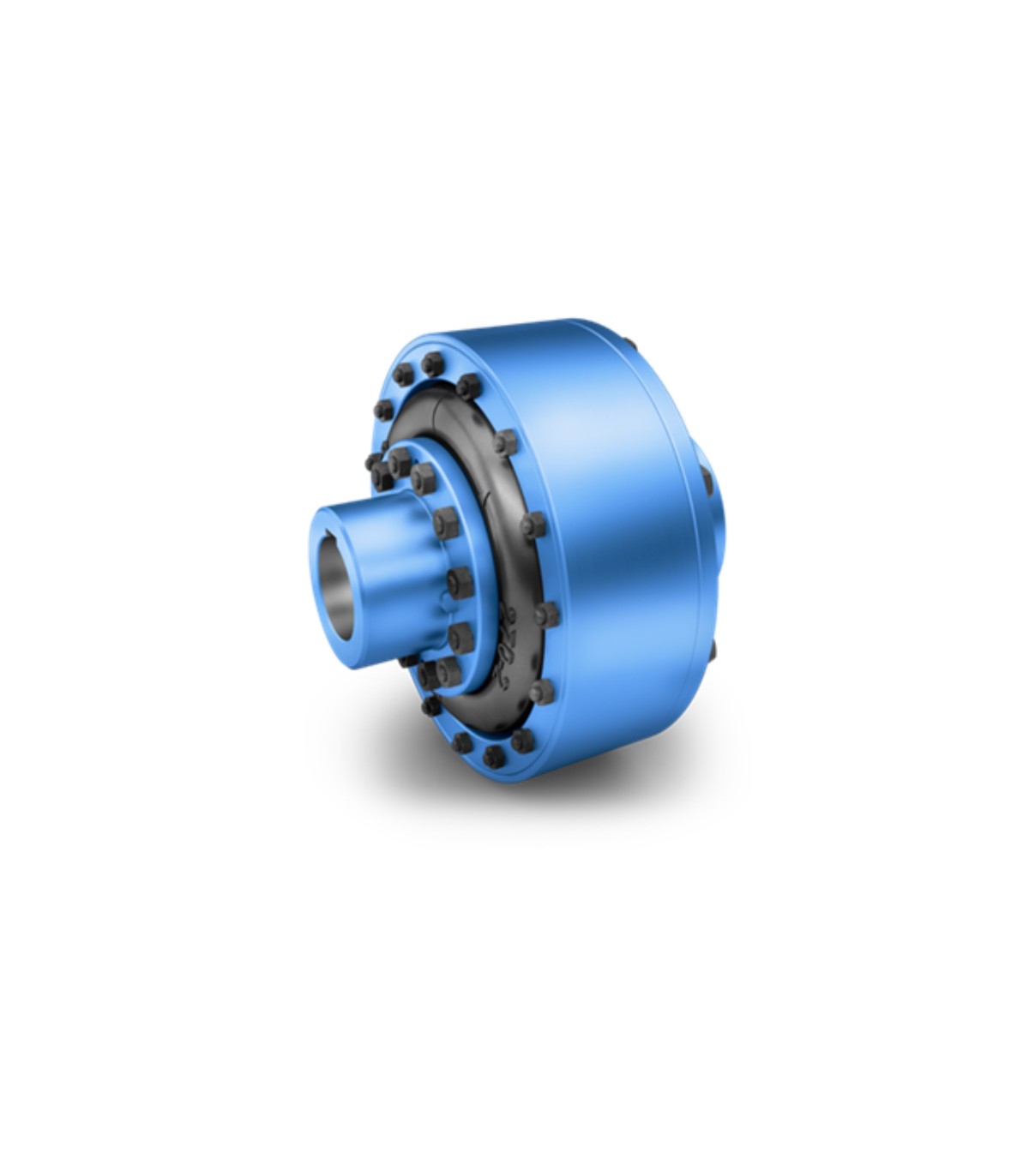

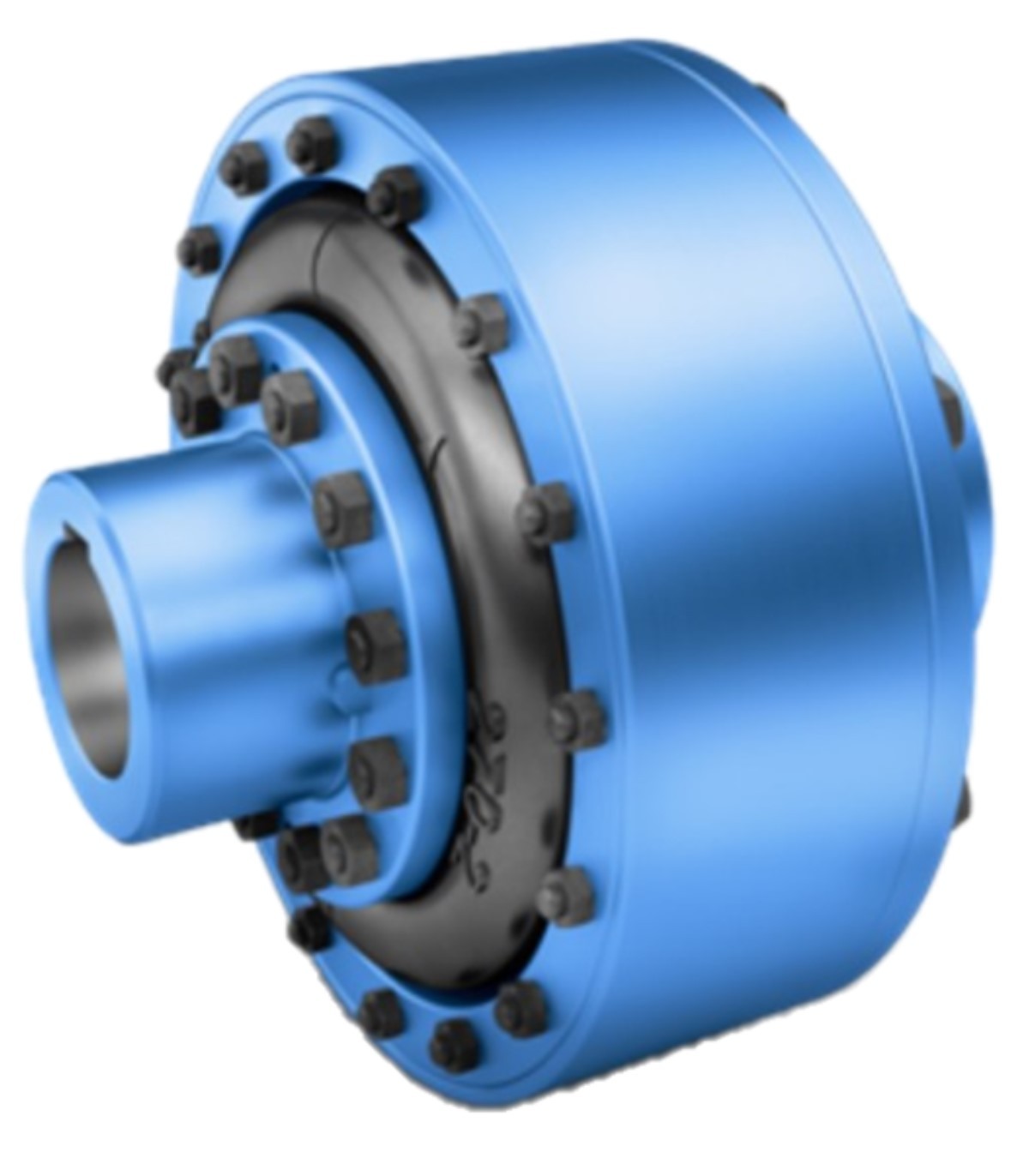

Highly Flexible Coupling ELPEX Elastic Ring Coupling
Highly Flexible Coupling ELPEX Elastic Ring Coupling
Brand:
Flender

Highly Flexible Coupling ELPEX Elastic Ring Coupling

Brand:
Flender
Flexible Coupling N-BIPEX Craw Coupling
Highly Flexible Coupling ELPEX-B Rubber Tire Coupling
Model: ELPEX

Owing to its low torsional stiffness and damping properties the ELPEX® coupling is very well suited to connecting machines with considerably non-uniform torque characteristics. Types with a fail-safe device between the flexible rings ensure emergency operation if the flexible rings are destroyed.

Make an Enquiry
Add to wishlist
Share
விவரம்
  • Highly flexible, backlash-free tire coupling
  • Nominal torque range from TKN = 1,600 Nm up to 90,000 Nm with 9 sizes
  • Temperature range: from –40 °C to +80 °C
  • Suitable for high dynamic loads
  • Good damping properties
  • Available as a fail-safe coupling
  • Available as a shaft and flange coupling
  • Designs available that comply with API 610 and API 671
Product Details
ELPEX

Data sheet

Model
ELPEX
