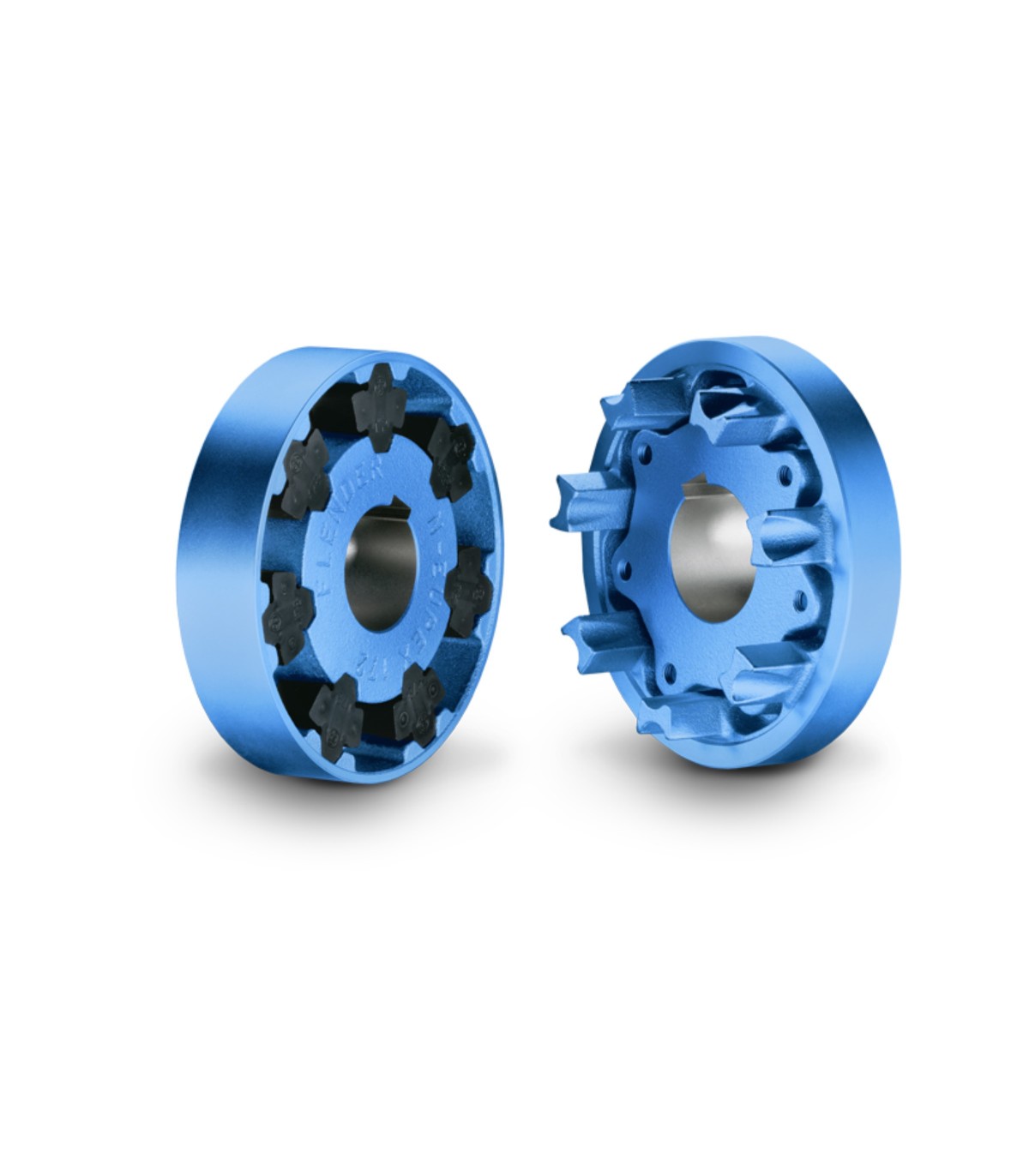

Model: N-EUPEX DS

N-EUPEX DS® couplings do not have a fail-safe device, allowing positive disconnection of the input and output side upon failure of the flexible elements due to overload or wear. Then, the metal parts of the DS coupling can rotate freely in opposite directions.

Make an Enquiry
Add to wishlist
Share
விவரம்
  • Damping shaft coupling that can be used universally to compensate for shaft misalignments
  • Nominal torque range from TKN = 60 Nm up to 21,200 Nm with 19 sizes
  • Temperature range: from –50 °C to +100 °C
  • Can be used universally and combined with many components of the N-EUPEX line
  • Disconnects driver and driven machine if elastomer fails
  • No fail-safe principle operation (the load is disconnected)
  • Suitable for use in potentially explosive environments; certified according to 2014/34/EU (ATEX)
  • Maintenance-free even if used in explosive atmospheres
Product Details
N-EUPEX DS

Data sheet

Model
N-EUPEX DS
17 other products in the same category:
Railway Coupling LBK Link Coupling
Flender

FLENDER LBK® connecting rod couplings have a split spacer and can be connected to the gear unit ultra-compactly. Radially arranged rubber elements create two hinge joints, which also make it possible to replace the...
View more
Railway Coupling GKG Cardan Joint Coupling
Flender

FLENDER GKG® cardan couplings are elastic, double-jointed output couplings used to compensate for primary suspension misalignments in the bogie with full torque transmission between the gear unit and the powered wheel...
View more
Hydrodynamic Coupling FLUDEX Fluid Coupling
Flender

Fluid couplings operate according to the Föttinger principle. The coupling parts on the input and output side are not mechanically connected and are therefore wear-free. The torque is transmitted by the fluid movement...
View more

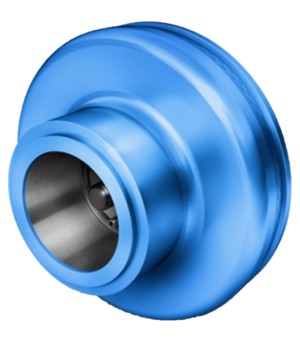

Railway Coupling MBG Membrane Coupling
