Brand:

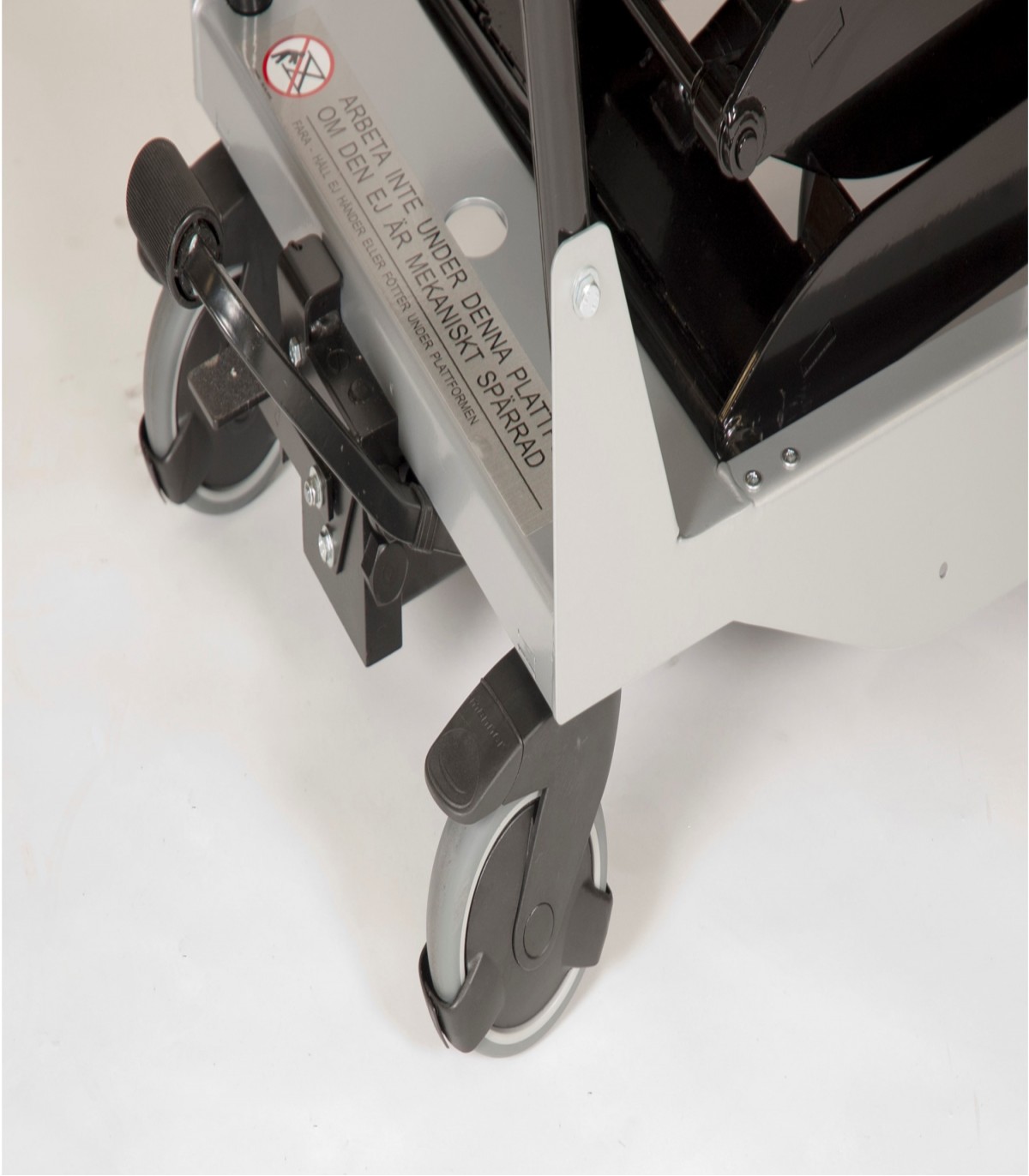

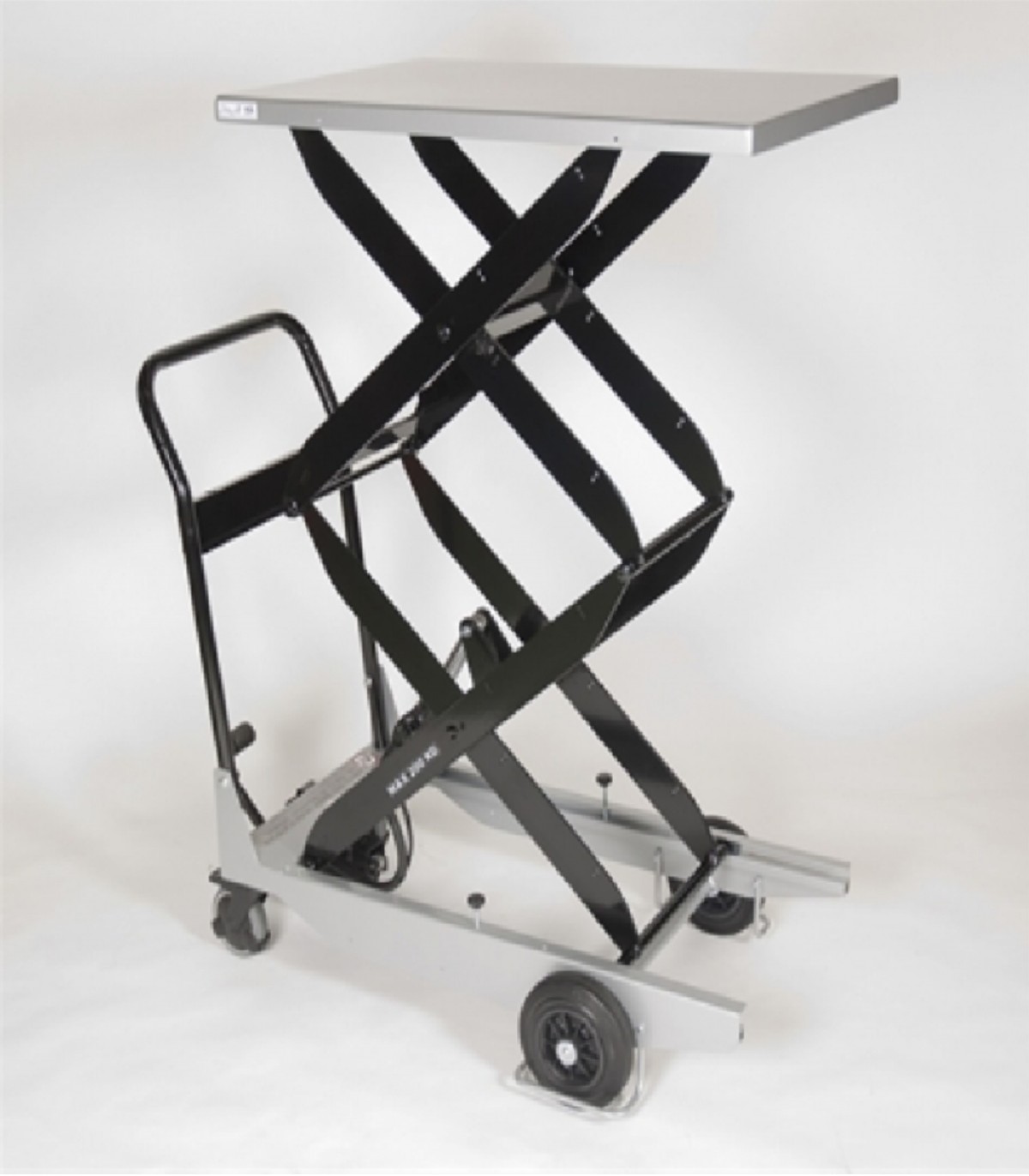

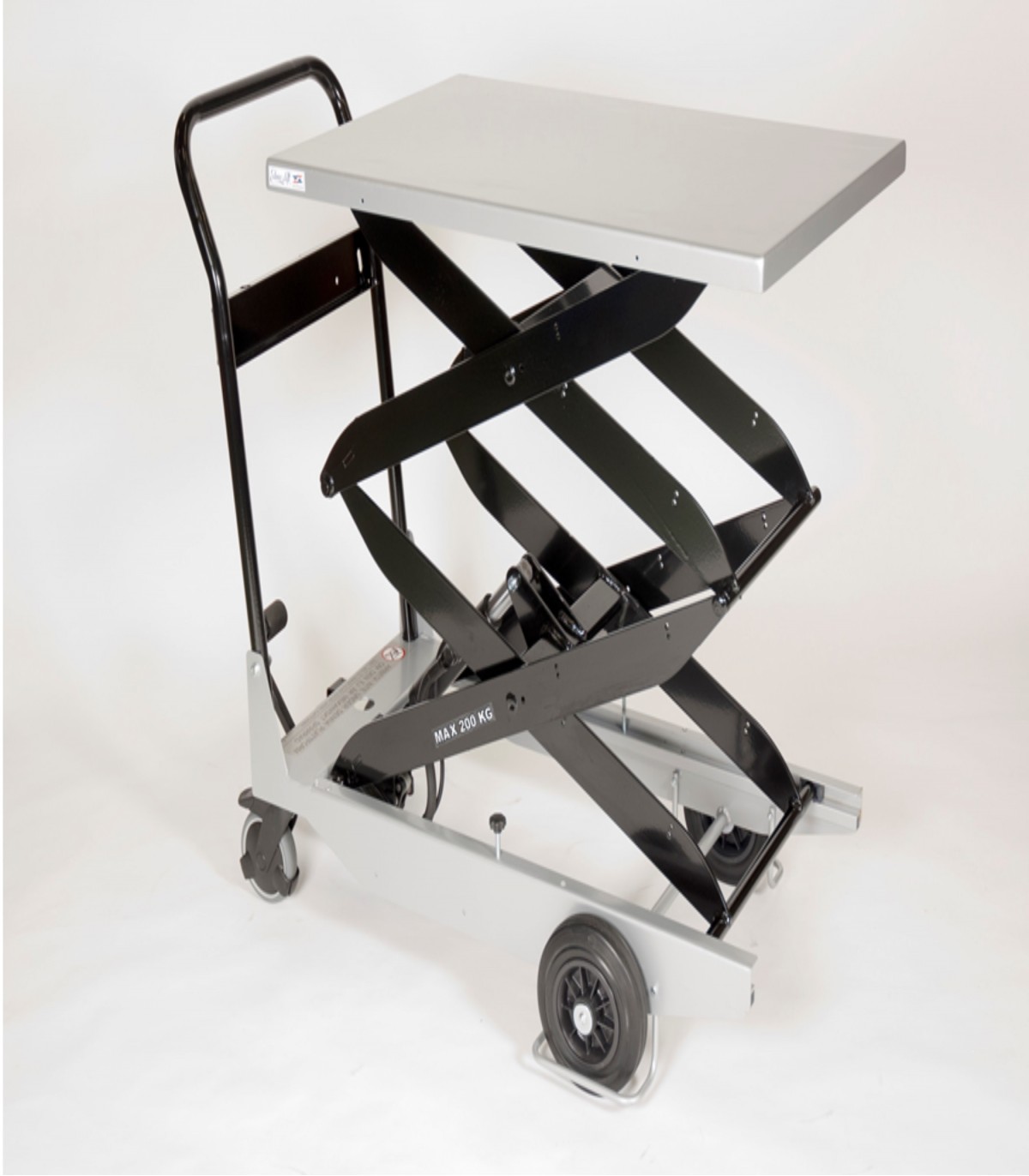

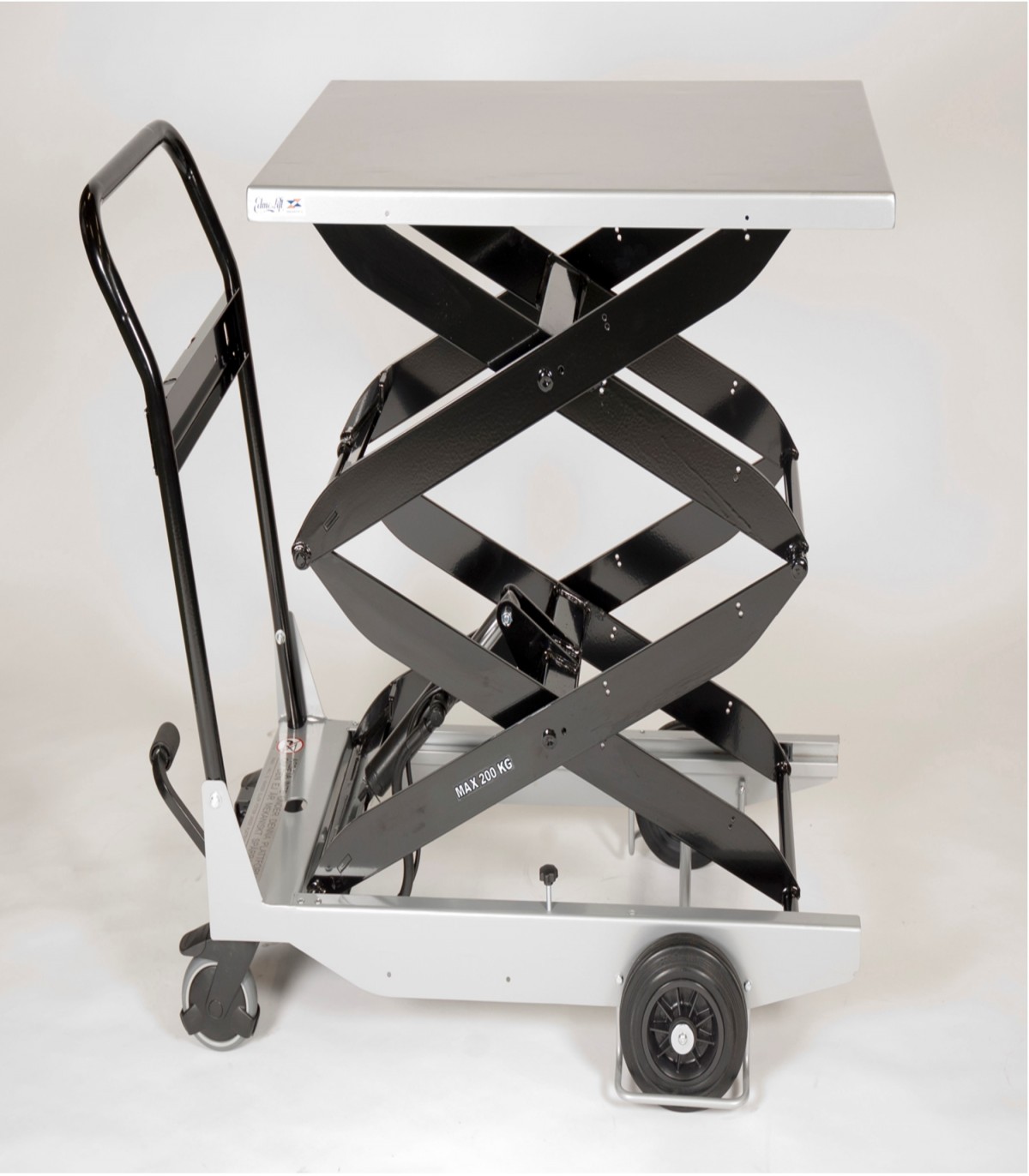

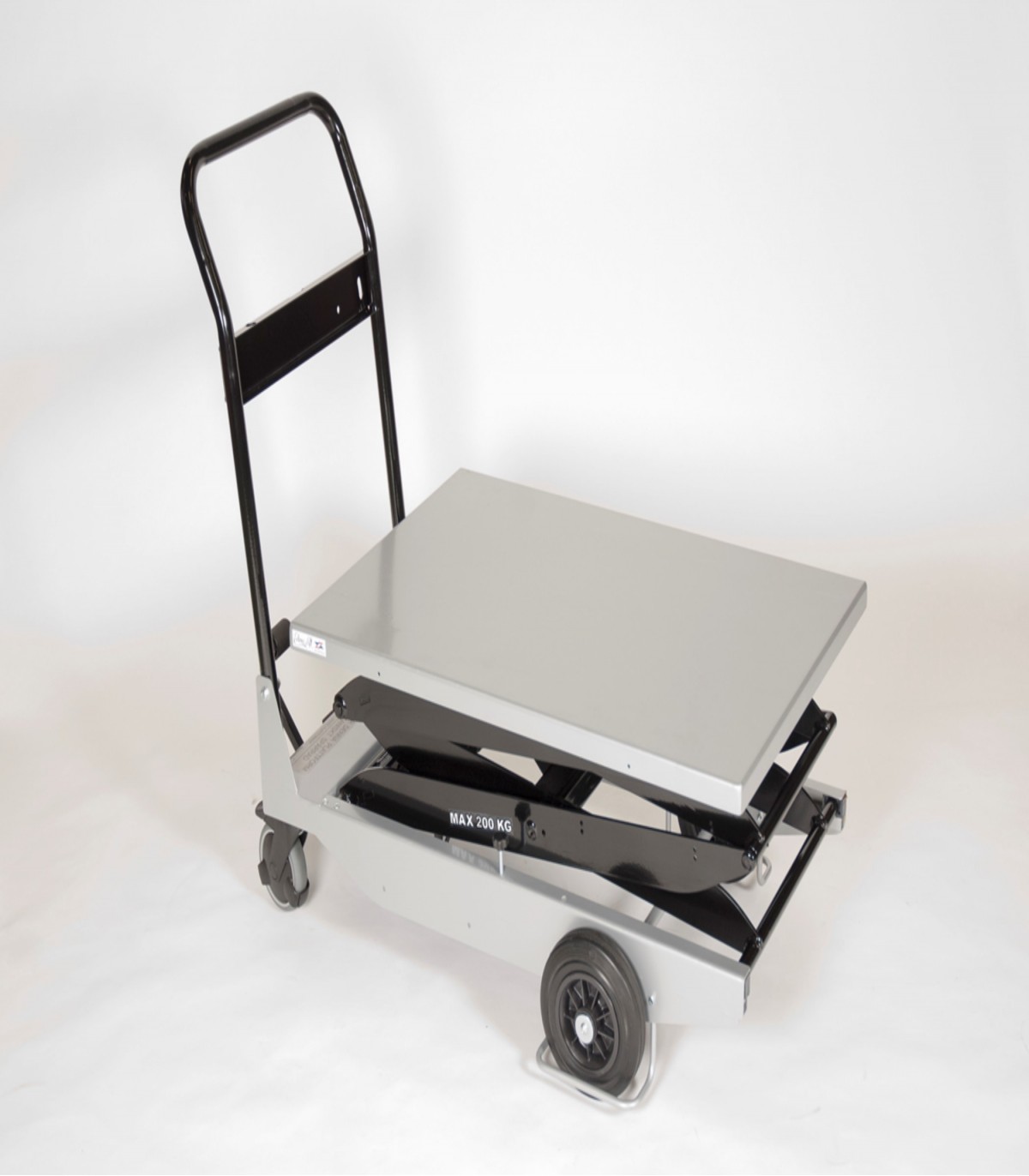

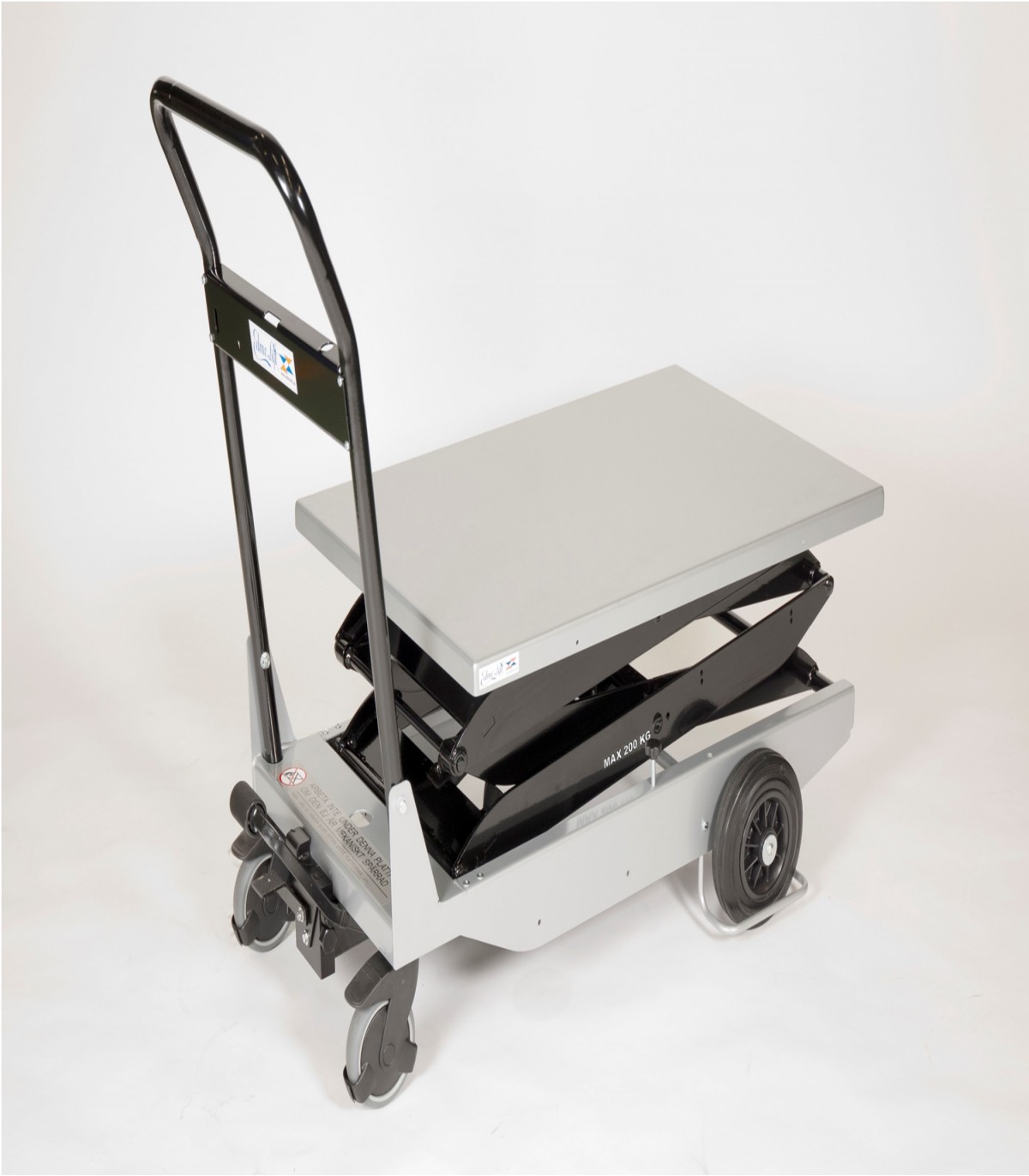

Lift Trolley TZD 203

Brand:

Model: TZD 203

Lift Trolleys

Make an Enquiry

Add to wishlist

விவரம்

EdmoLift's TZ-series is a series of stable Swedish manufactured trolleys and work tables. The trolleys are easily manoeuvrable and have a variety of different uses. TZ models can even be customised to suit the individual needs of the customers.

These lift trolleys are used wherever there is a need for lifting, assembly, transportation or where an adjustable working height is required.

Product Details

Reference TZD 203

Data sheet

Model: TZD 203

Art. no.: 521445

Capacity: 200 kg

Lift stroke: 1620 mm

Closed height: 450 mm

Length: 1150 mm

Width: 650 mm

Loading area width: 600 mm

Loading area length: 900 mm

Attachments

TZD 203

Download (373.41k)

20 other products in the same category:

Edmolift

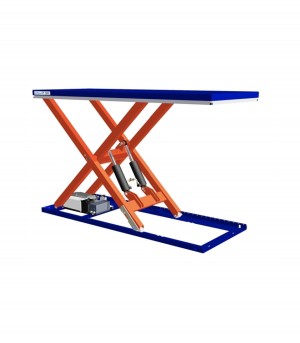

Single Scissor Lift Table TA 1000
