Model: TMH 10000

The horizontal double scissor lift table by EdmoLift is the solution you need to handle goods that are both heavy and long. The lift platform is equipped with a combination of two pairs of EdmoLift scissors to obtain the desired lift range and length of the scissor lift table. The lift maneuvers of the two pairs of scissors are mechanically controlled to achieve a parallel lift operation.

Make an Enquiry

Add to wishlist

விவரம்

Scissor lift table load capacity - max 10 000 kg
Lift table platform length from 2600 mm to 6200 mm as a standard model
Comprehensive program of accessories and possibilities for customizing the scissor lift tables
Complies with European safety standard EN 1570-1 - CE certified
24 V DC control unit and operating device with deadman's switch
IP54 approved electrical system
Safety spacing between all moving parts of the lift table
Overload protection
Adjustable trap prevention safety trip bars on all four sides of the platform
The lift table is equipped with hose burst valves and mechanical locks for servicing and maintenance
Maintenance-free bearing surface
PLC control with possibility to program various functions is included for the standard model. PLC control enables customization for specific requirements

Product Details

Reference TMH 10000

Data sheet

Model: TMH 10000

Art. no.: 33902

Capacity: 10000 kg

Lift stroke: 1100 mm

Closed height: 300 mm

Length: 3400 mm

Width: 900 mm

Lifting time: 64 sec

kW: 3,0 kW

Attachments

TMH 10000

Download (1.27M)

20 other products in the same category:

Edmolift

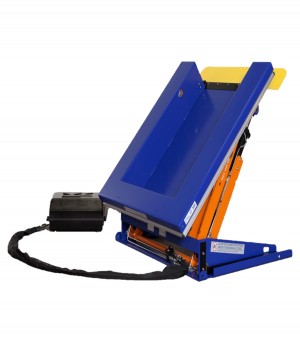

Arm Lift ALT 1500

Armlift's unique patented function offers an ergonomic work place with ample foot space, comfortable working positions and unrivalled accessibility. Armlift is the perfect choice for almost all work places that handle...

Edmolift

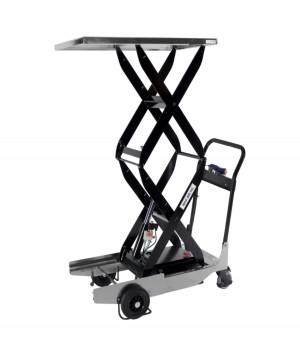

Scissor Lift Trolley CZ 203

With a variety of different models, with single and double scissors, a lift capacity from 200 kilos to one metric ton and a lift range from 920 mm to 1620 mm, we can offer a wide range of lift trolleys. The trolleys...

Edmolift

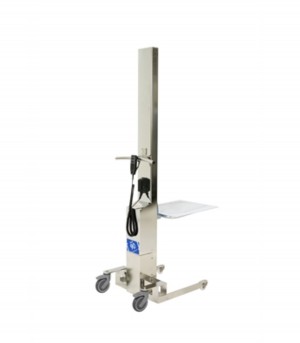

Work Positioner WP 90

The lifting trolleys in the stainless steel series effectively handle weights of up to 300 kg and is designed with the best ergonomics and flexibility in mind. The entire series can be specially adapted to suit your...

Edmolift

Vertical Double Scissor Lift Table TBD 2000

EdmoLift's vertical double and triple scissor lift tables can be used as working platforms, pallet stackers, work tables, lifts and lifts for disabled persons, to name a few applications. Compared to a traditional...

Edmolift

Single Scissor Lift Table TA 1000

EdmoLift’s C-series scissor lift tables and trolleys has been developed to provide unrivalled value for money! Many of the essential components, including the hydraulics, are identical to those found in our T-series....

Edmolift

Stainless Steel Work Positioner WP 70EM SS

Edmolift

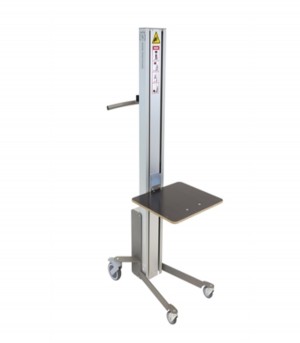

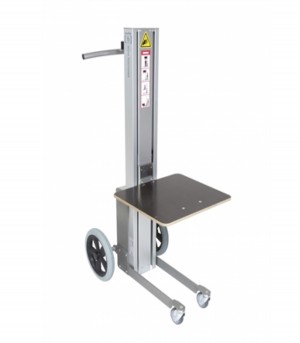

Stainless Steel Work Positioner WP 70 SS
