Vertical Boring-Milling Machine VB182
Brand:
AZ Spa

Vertical Boring-Milling Machine VB182

Brand:
AZ Spa
Vertical Boring-Milling Machine VB260
Vertical Boring-Milling Machine VB150
Model: VB182
Make an Enquiry
Add to wishlist
Share
விவரம்

Boring range : 30-200mm

Max boring height : 600mm

Max milling width : 340mm

Max milling length : 1225mm

Max vertical travel of the head : 600mm

Distance from spindle center to column : 300-420mm

Table surface : 1430x400mm

Max longitudinal travel of table : 1400mm

Max traverse travel of table : 120mm

Max distance between head and table : 1100mm

Spindle rotation : 1000rpm

Head movement : 0-100mm/min

Table movement : 0-200mm/min

Product Details
VB182

Data sheet

Model
VB182
20 other products in the same category:
Crankshafts Grinding Machine CGA270
AZ Spa

CGA and CGX models move the grinding head on the base, this solution permit to reduce the overhall machine dimensions. The workpiece is clamped by headstock fixed on the base and tailstock moving on table support by...
View more
Conrod Boring Machine BL600
AZ Spa

Variable boring spindle speed with electronic varistor and digital readout. 24V electrical control system Square with manual adjustment and variable automatic transversal adjustment for holding connecting rod, for...
View more

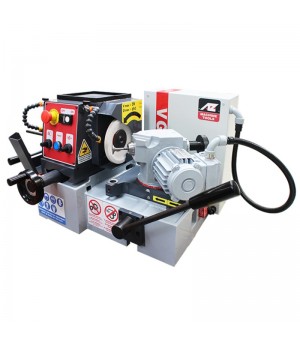

Valve Grinding Machine VGX
AZ Spa

Valve variable rotation speed Grinding wheel variable speed Valve headstock adjustement from 15° to 60° Valve clamping by collet V-support and valve stop for repeatable valve stem grinding Coolant system
View more
Grinding-Milling Machine SP1600Y
AZ Spa

Surface grinders are the ideal choice for all machine shops or high performance shops. Fixturing that will set up all work pieces easy and function rapidly. Infinitely variable table traverse producing the exact...
View more

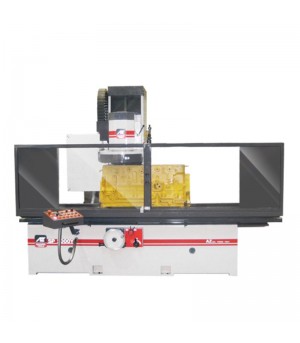

Grinding-Milling Machine SP2000Y
