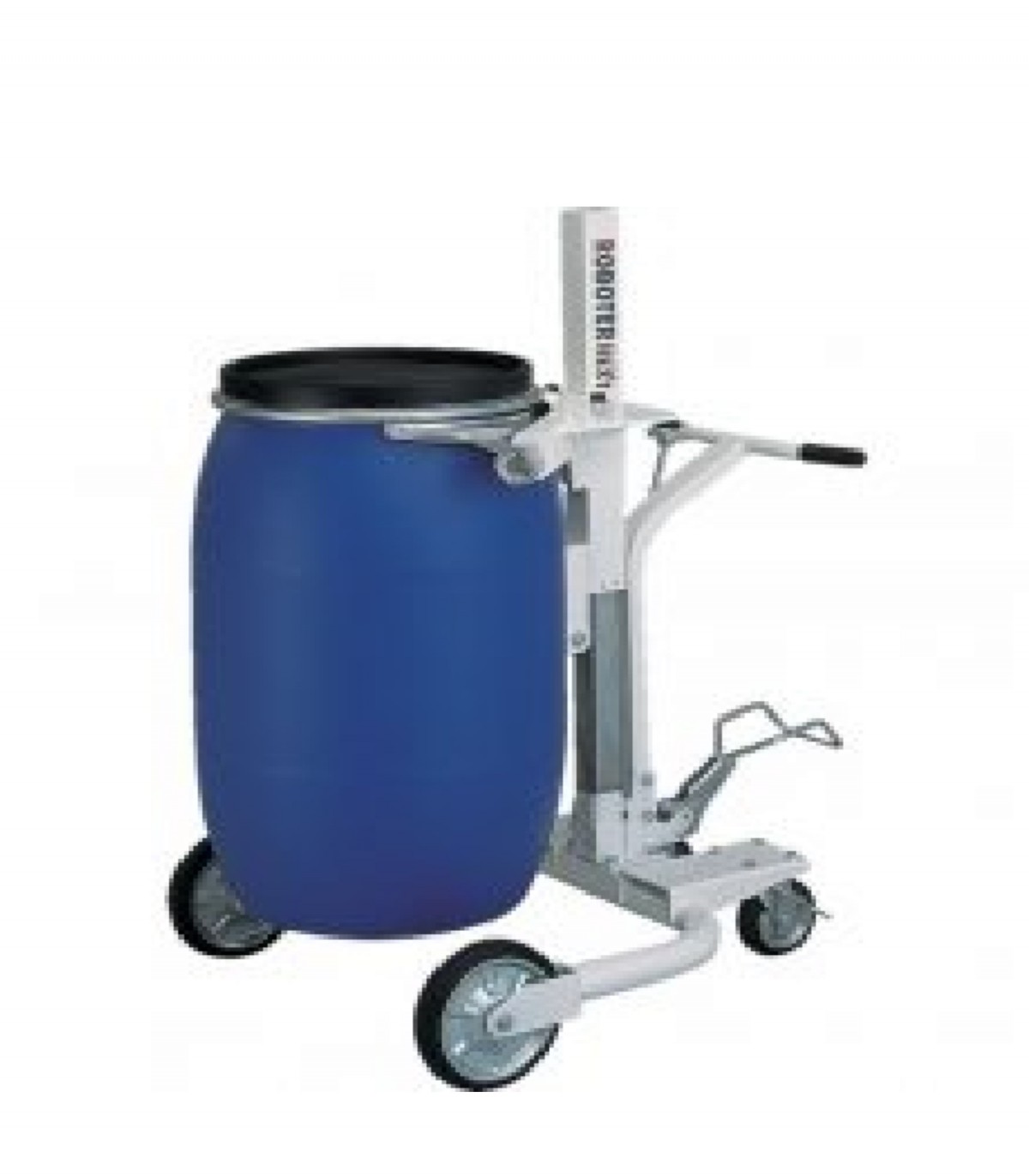

Model: RX-K

Drum carrier is a mechanical equipment that is used to handle and transport cylindrical module such as metal drums and plastic drums. It has spring-loaded metal arms for a tight and secure grip.

Make an Enquiry
Add to wishlist
Share
விவரம்

Conveyance of Polyethylene Drums

- Just press the Kuwagata (antlers) against a drum, then lift. Chucks grab automatically. The chucks release their grip automatically after the drum touches down again

- The antlers can grip drums with a rim neck diameter from 470 to 570mm. Simply adjust the position of the chuck grip and it's ready to use.

Product Details
RX-K

Data sheet

Model
RX-K
Capacity
300 kg
Lift stroke
430 mm
Length
1090 mm
Width
890 mm
Height
1040 mm
Chuck Height
710 - 1220 mm
Front wheels
ø250mm rubber x 2
Rear wheels
ø150 mm rubber x 2
Net Weight
83 kg
Distance between front wheels
650 mm
Lift per pedal press
17 mm
Pedal operating force
25 kg
Chuck diameter
ø470 - 570 mm
Overall protrusion of drum rim neck
7mm or greater
20 other products in the same category:
Turn Table Mawaru Pallet Turn MR-45
Taiyu

Working would be easier if you could change the direction of a loaded pallet. This pallet turning ring makes it possible! Weighing only about 15 kg, it can be taken anywhere and used to turn the pallet to face in any...
View more
Turn Table Mawaru Pallet Turn PTM-80
Taiyu

Working would be easier if you could change the direction of a loaded pallet. This pallet turning ring makes it possible! Weighing only about 15 kg, it can be taken anywhere and used to turn the pallet to face in any...
View more
Drum Carrier CA-N2-S
Taiyu

It’s a type of drum handler that is designed to easily slide into a forklift truck. This type of drum handler is used to efficiently and safely load and unload different sizes and types of drums. Once inserted into...
View more
Drum Dumper DM-H
Taiyu

Drum Dumper for Hoisting - Assistant device to turn the drum over reduced the operation force (70% cut) so that the drum is kept stable, safety and the certainty of work is guaranteed.
View more
Drum Carrier RC-01
Taiyu

Drum carrier is a mechanical equipment that is used to handle and transport cylindrical module such as metal drums and plastic drums. It has spring-loaded metal arms for a tight and secure grip.
View more

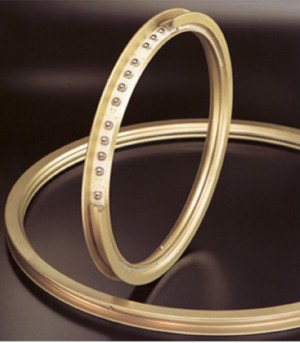

Turn Table Luluman SB-60
