Sugino Tube Pulling

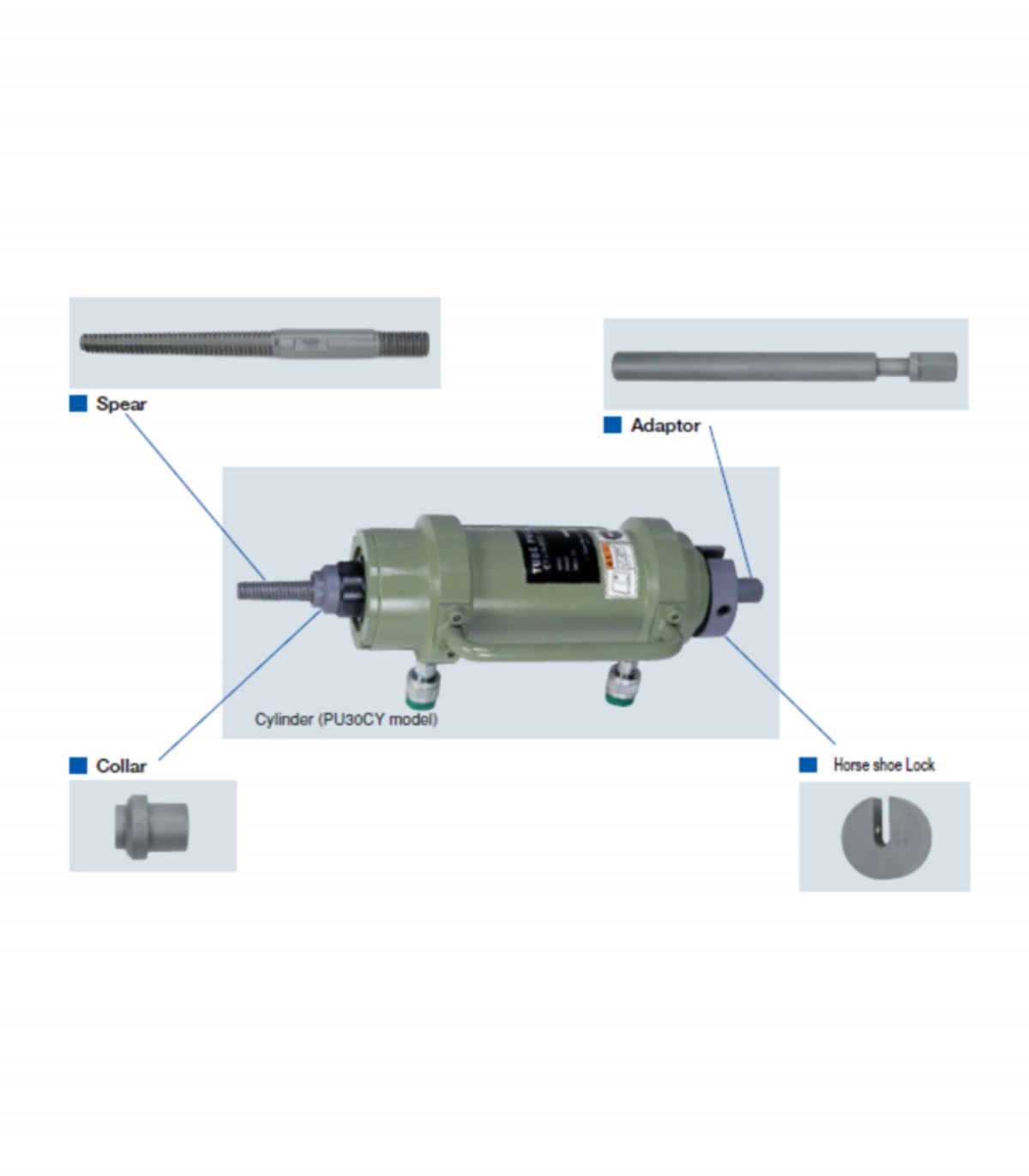

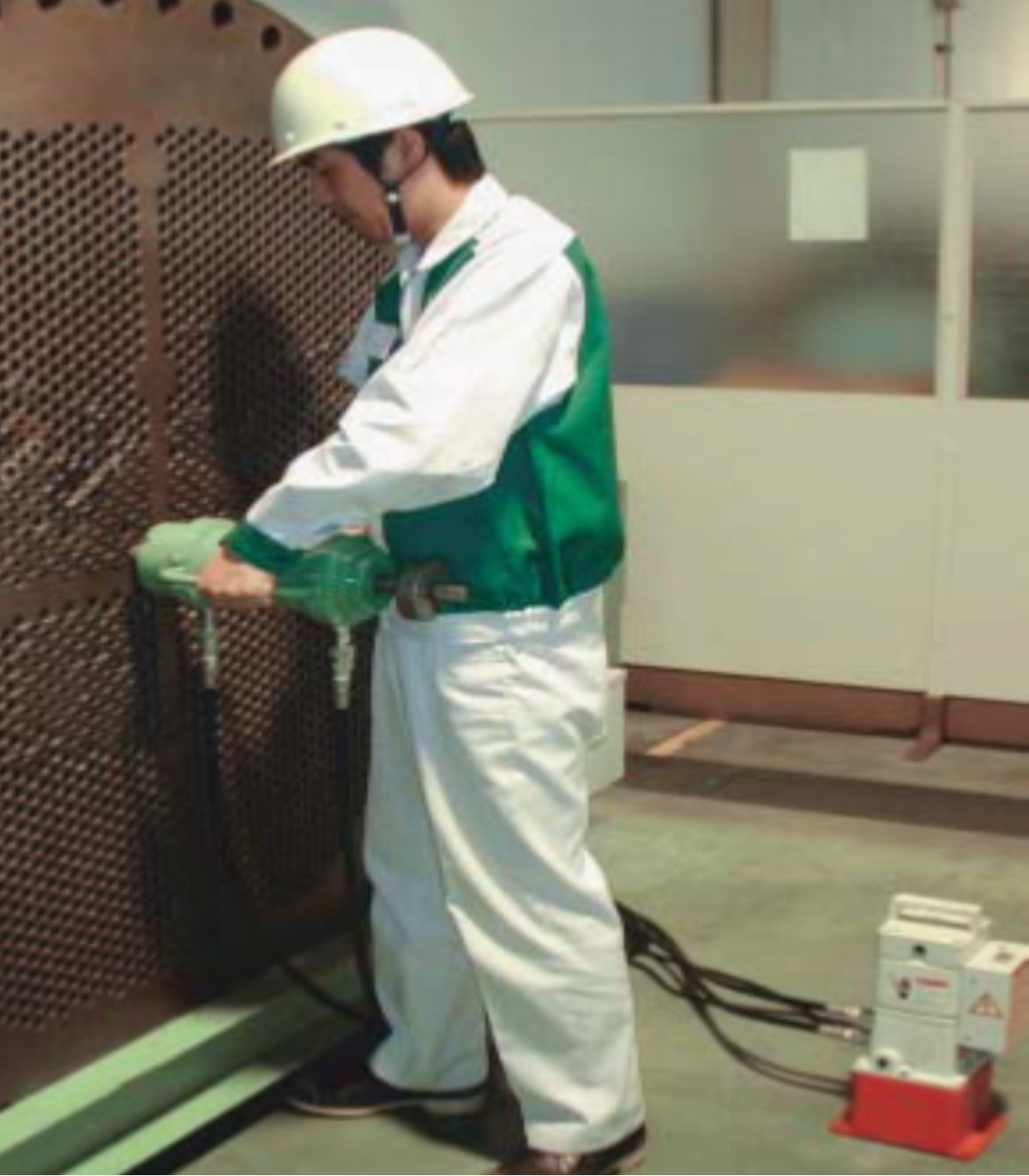

Pulls out condenser and heat exchanger tubes. The components of the unit consist of hydraulic pump, cylinder, hose and attachments.

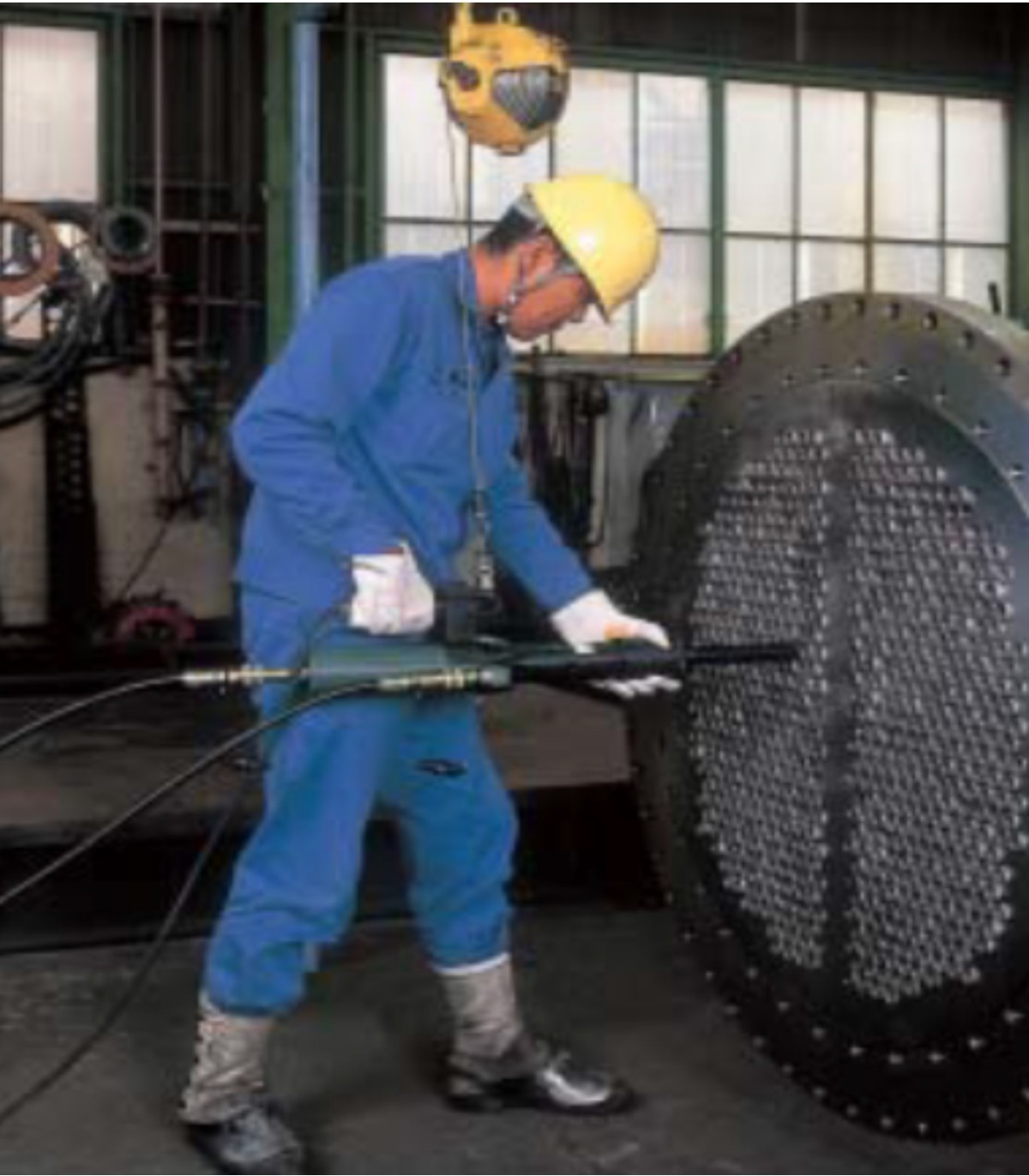

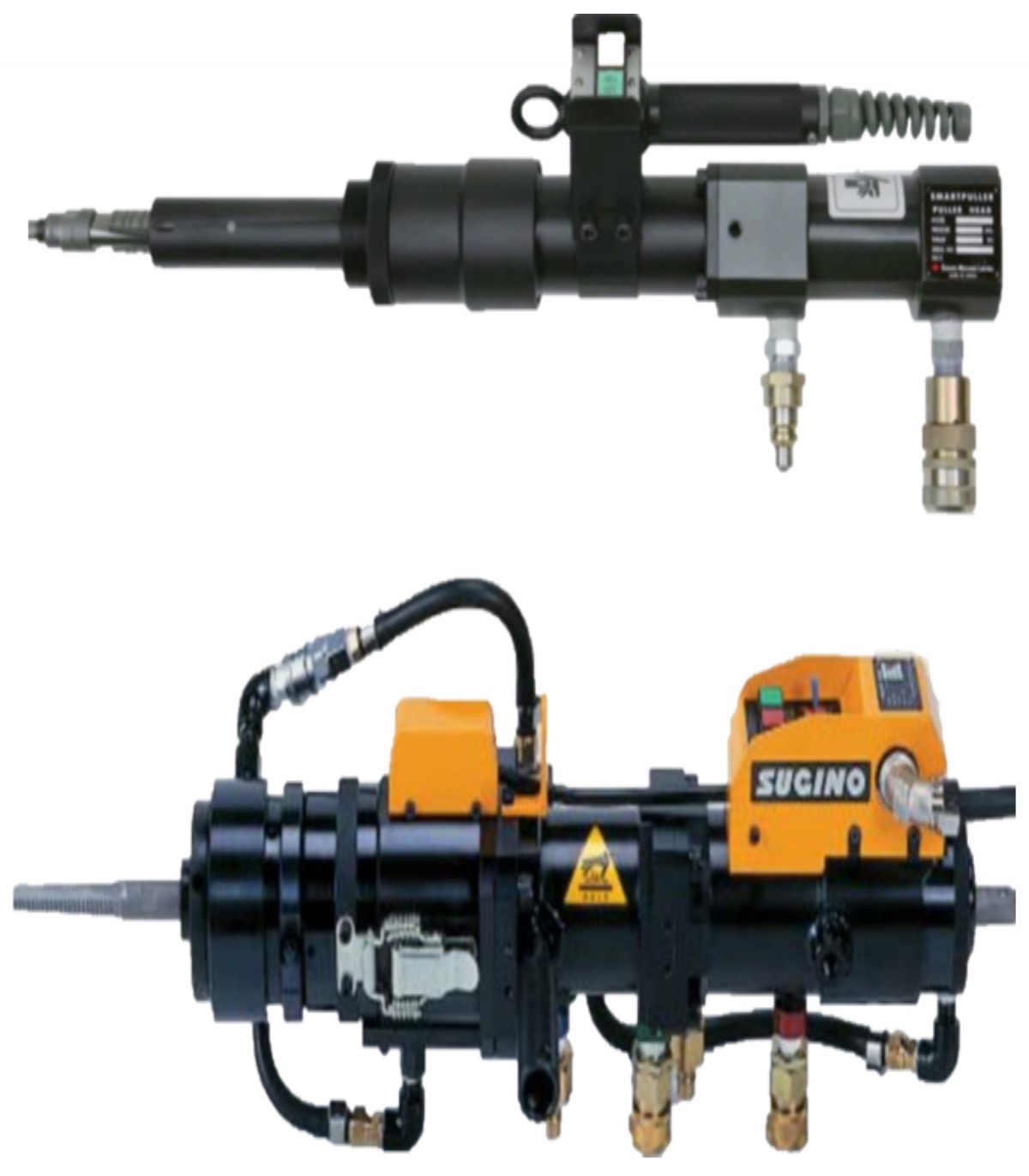

Extracts the deteriorated tube efficiently from a heat exchanger and condenser by a simple button operation. By clamping the tube inner surface to pull out the tube, no spear screwing or removing is necessary, so the working time is reduced significantly.

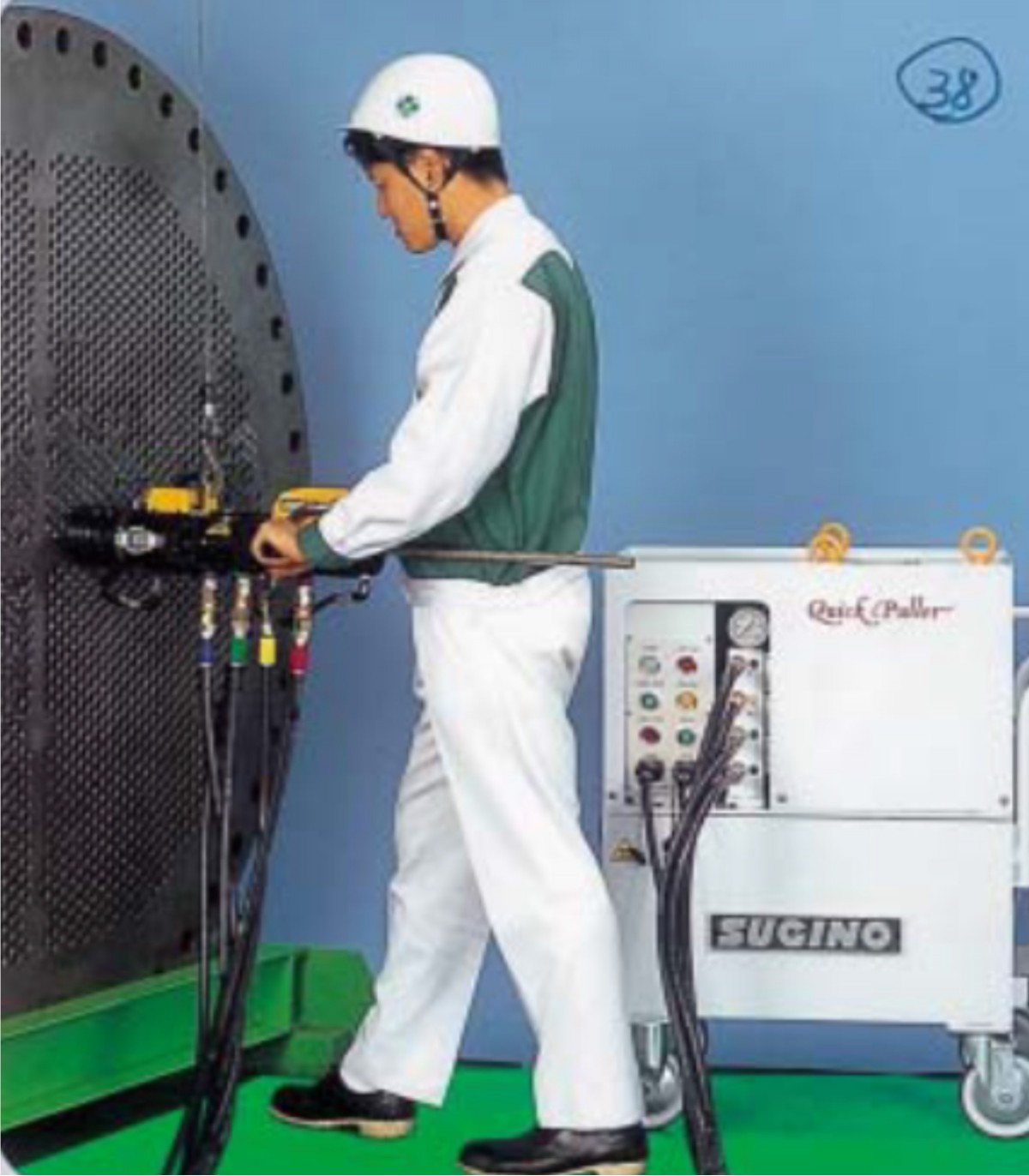

Continuously pulls out the corroded tubes of heat exchangers and condensers. It screws a spear into the tube and is operated by a button in the controller panel. With a maximum pulling force to 300kN, it can extract a large tube easily.
