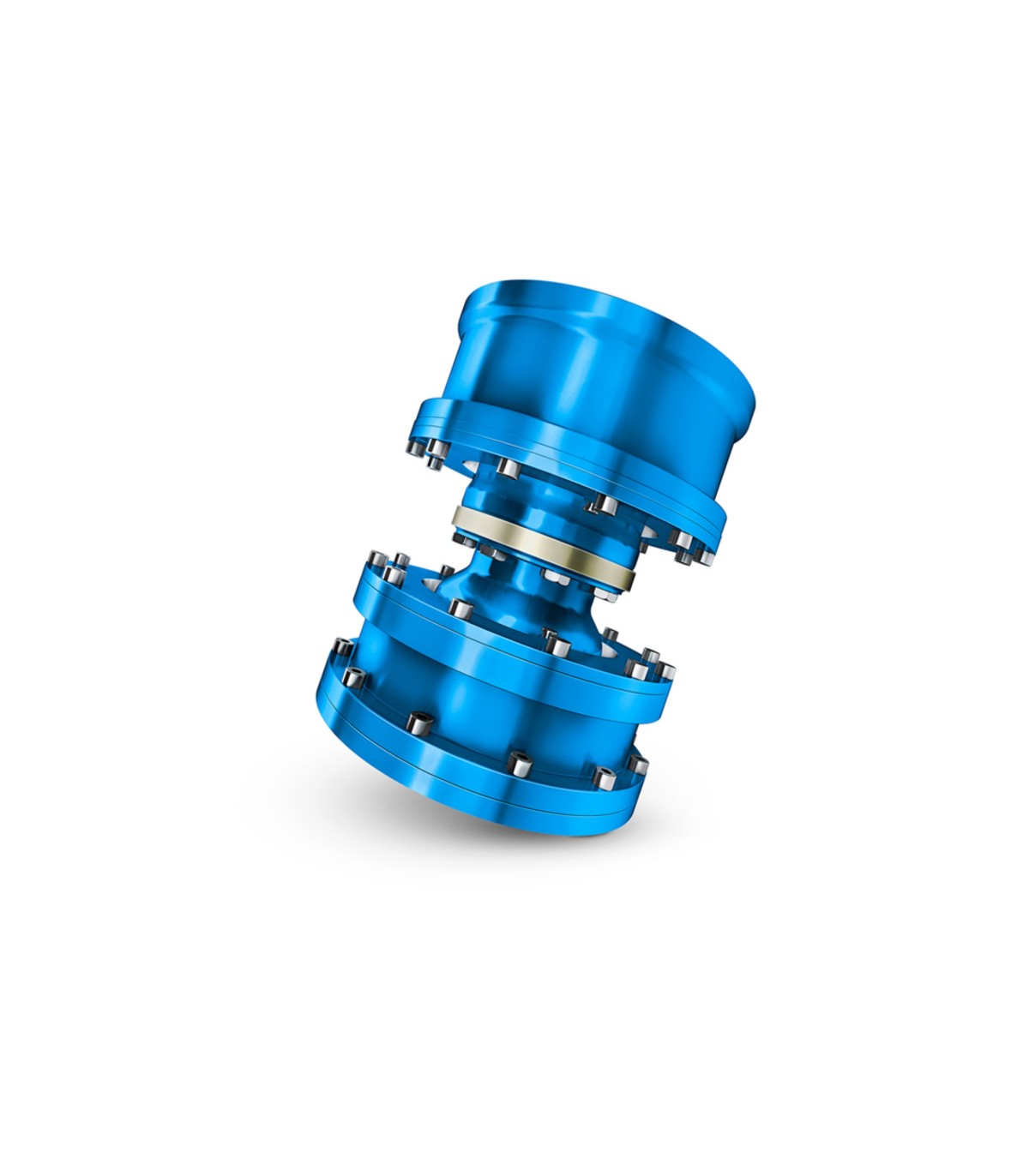

Flender Railway Coupling ZBG Gear Coupling

Flender Railway Coupling ZBG Gear Coupling

Flender Railway Coupling ZBG Gear Coupling

Brand:

Flender Railway Coupling ZBG Gear Coupling

Brand:

Flender Railway Coupling MBG Membrane Coupling

Model: ZBG

Grease-lubricated FLENDER ZBG® gear couplings make the best-possible contribution to safeguarding the maximum availability of your rail vehicle. Millions of kilometers of track, icy Siberian temperatures, extreme heat, maximum starting torques and revolution speeds, extremely dusty conditions, axial or radial jolts at high speeds – whatever route you use it on, the FLENDER ZBG is always in its element.

Make an Enquiry

Add to wishlist

Share

Description
Product Details

Description

Torsionally rigid curved-tooth coupling
Nominal torque range up to TKN = 3,000 Nm
Temperature range: from –50 °C to +55 °C
Long service life and low maintenance expenses
Maintenance-free for up to three million kilometers of vehicle travel or 12 years
Wear-resistant and service-friendly with very long maintenance intervals
Main inspection combined with gear unit and motor checks
On request, initial lubricant filling can occur on delivery
Simple and rapid relubrication using the grease nipple
Good emergency running properties thanks to sealed grease reservoirs
Clear load reserves, even after extremely long running times
Optimized seal system to prevent dust from penetrating
Reliable running if the chassis is icy and at temperatures well below zero
Heat-resistant, even in extreme conditions

Product Details

Reference ZBG

Data sheet

Model: ZBG
