Flender Railway Coupling LBK Link Coupling

Flender Railway Coupling LBK Link Coupling

Brand:

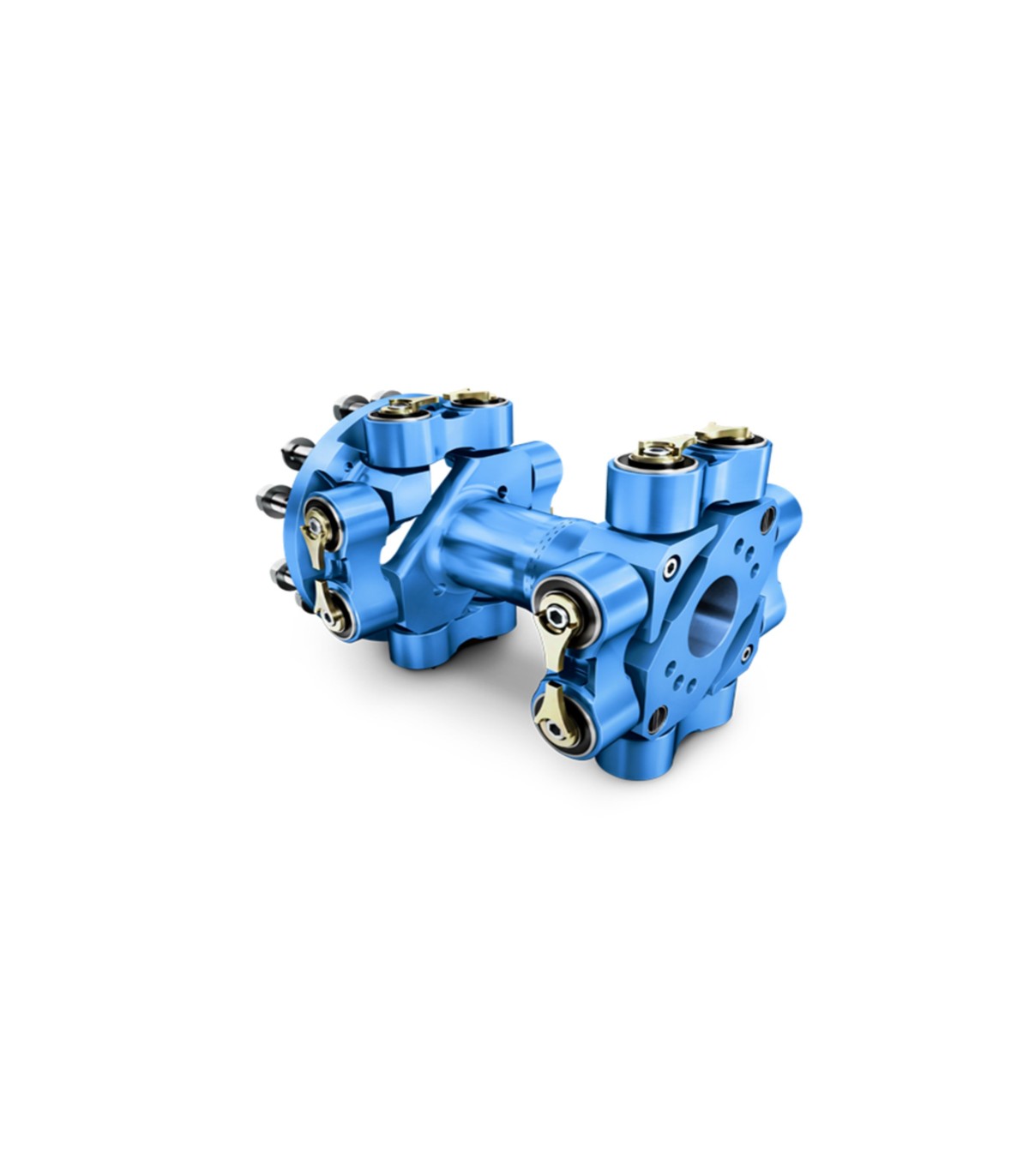

Flender Railway Coupling LBK Link Coupling

Brand:

Flender Railway Coupling GKG Cardan Joint Coupling

Flender Railway Coupling MBG Membrane Coupling

Model: LBK

FLENDER LBK® connecting rod couplings have a split spacer and can be connected to the gear unit ultra-compactly. Radially arranged rubber elements create two hinge joints, which also make it possible to replace the elastic elements radially beneath the vehicle.

Make an Enquiry

Add to wishlist

Share

Description
Product Details

Description

Elastic, double-jointed rod coupling
Nominal torque range up to TKN = 5,731 Nm with 5 sizes
Temperature range: from –30 °C to +60 °C
Radially arranged rubber elements also make it possible to replace the elastic elements radially beneath the vehicle
Compact connection to the gear unit is possible
Delivery possible as an assembly with FLENDER rail couplings
Parts are 100% trackable
Extensive service
Optionally available integrated into the gearbox hollow shaft

Product Details

Reference LBK

Data sheet

Model: LBK
