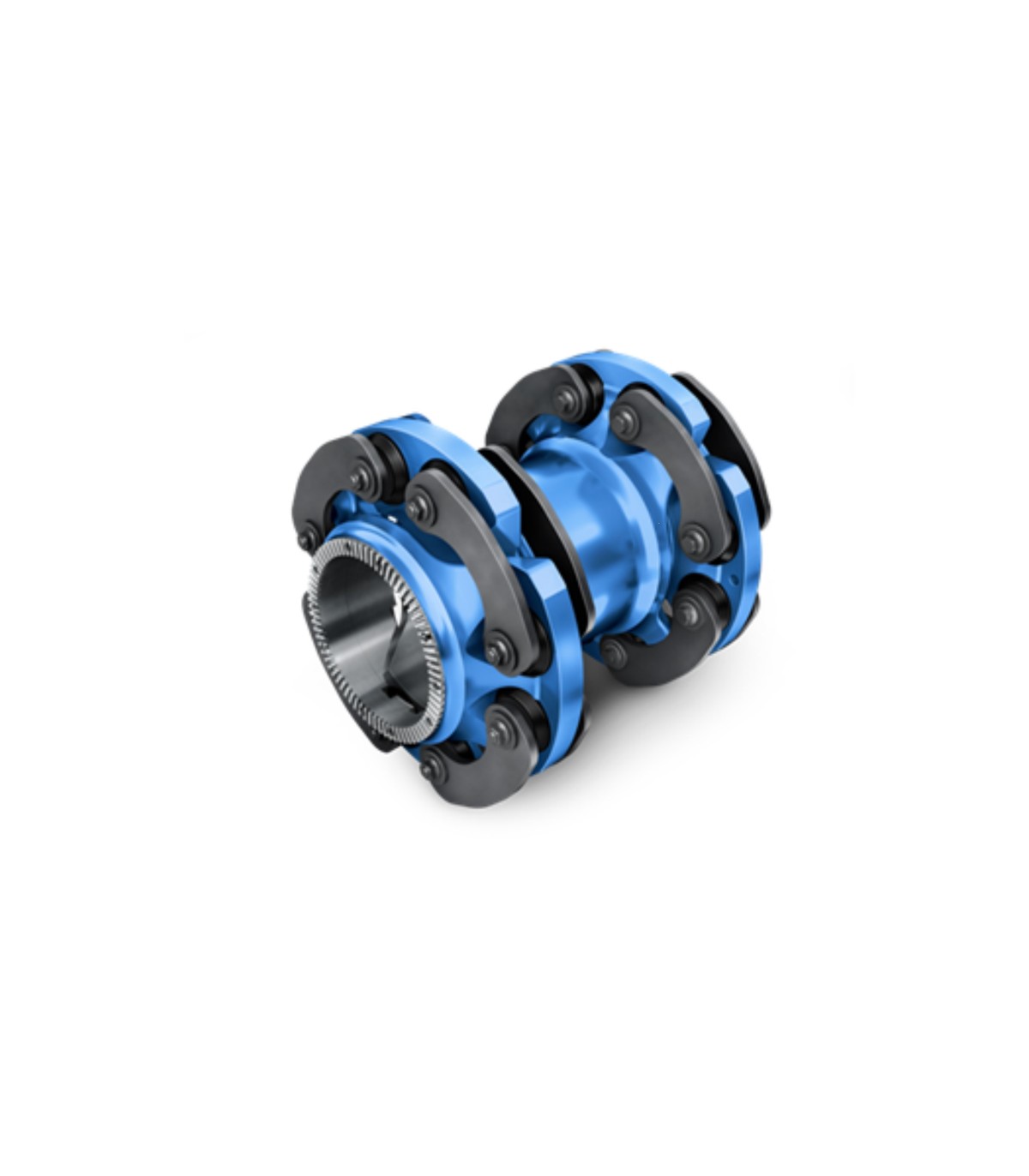

Flender Railway Coupling GKG Cardan Joint Coupling

Flender Railway Coupling GKG Cardan Joint Coupling

Brand:

Flender Railway Coupling GKG Cardan Joint Coupling

Brand:

Flender Hydrodynamic Coupling FLUDEX Fluid Coupling

Flender Railway Coupling LBK Link Coupling

Model: GKG

FLENDER GKG® cardan couplings are elastic, double-jointed output couplings used to compensate for primary suspension misalignments in the bogie with full torque transmission between the gear unit and the powered wheel set shaft. They permit very large shaft displacements and allow major misalignments between the axle and the gear unit while generating only very slight reaction forces.

Make an Enquiry

Add to wishlist

Share

Description
Product Details

Description

Elastic, double-jointed cardan coupling
Nominal torque range up to TKN = 5,861 Nm with 5 sizes
Temperature range: from –30 °C to +70 °C
Long service life of up to one million kilometers of vehicle travel
Spherical rubber elements permit very large shaft displacements and allow major misalignments between the axle and the gear unit
Low reaction forces

Product Details

Reference GKG

Data sheet

Model: GKG
