Flender Backlash-Free Coupling BIPEX-S Elastomer Coupling

Flender Backlash-Free Coupling BIPEX-S Elastomer Coupling

Brand:

Flender Backlash-Free Coupling BIPEX-S Elastomer Coupling

Brand:

Flender Torsionally Rigid Coupling ARPEX ART Turbo Coupling

Flender Backlash-Free Coupling SIPEX Metal Below Coupling

Model: BIPEX-S

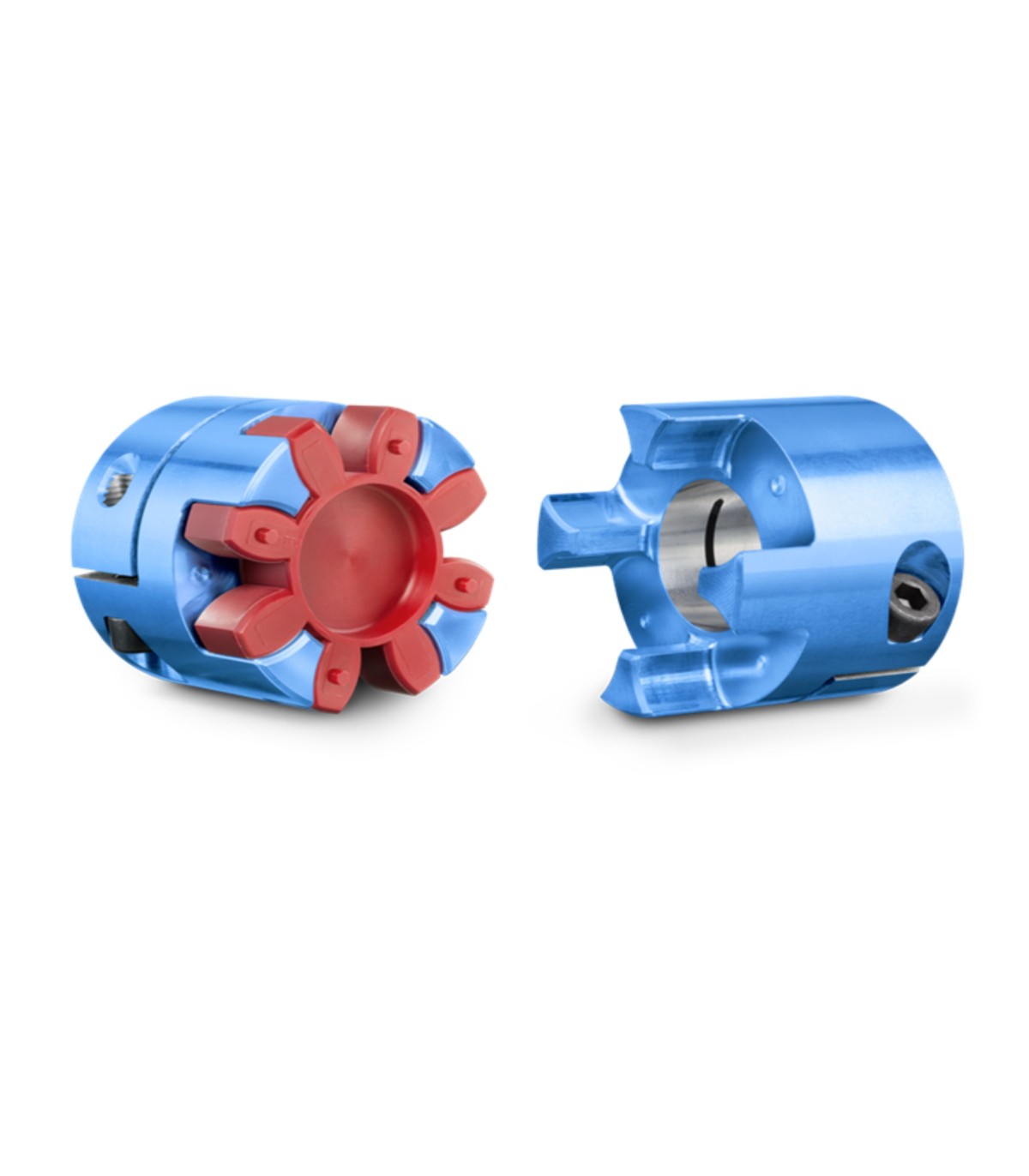

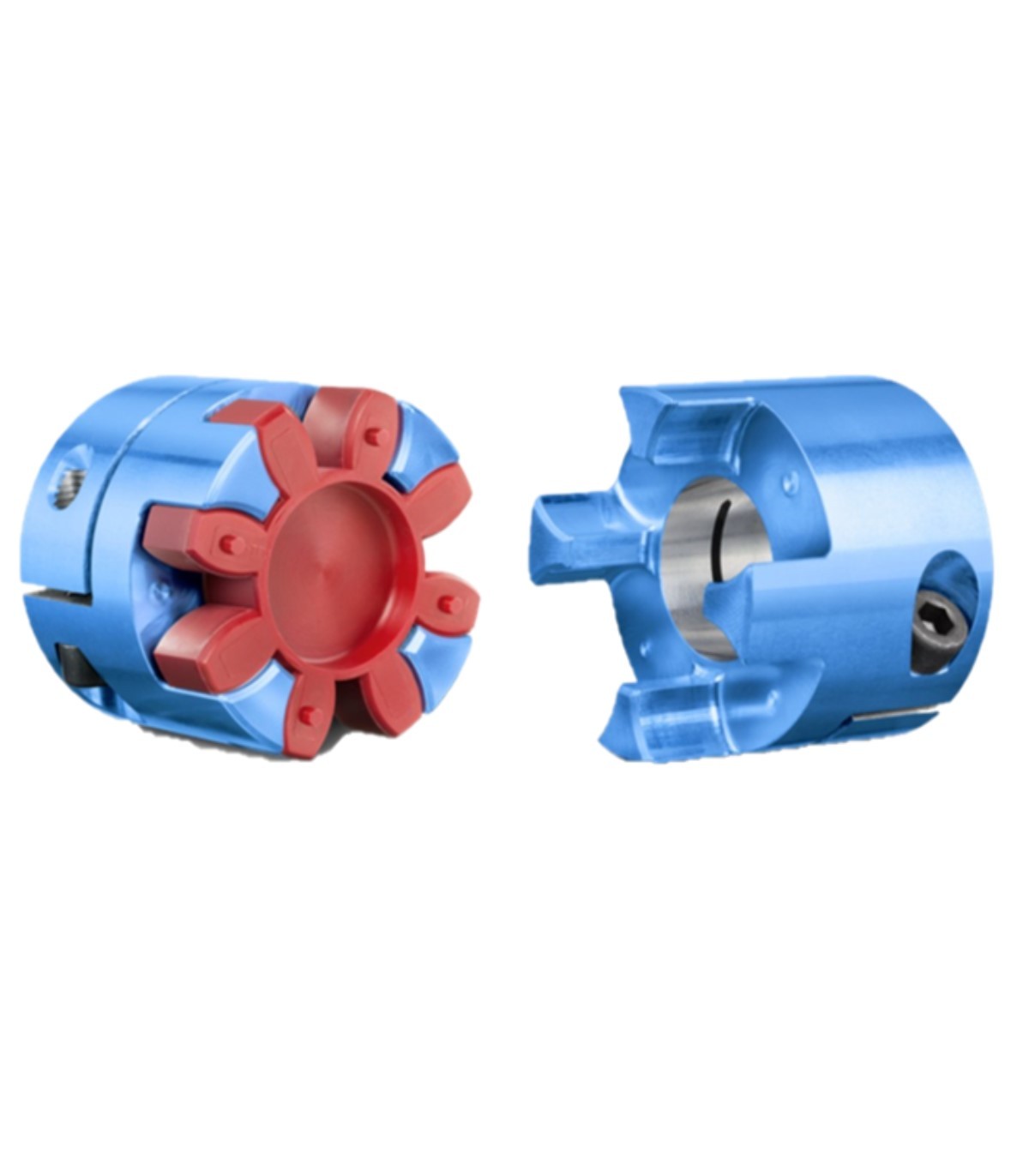

The BIPEX-S coupling is made up of two aluminum or steel hubs and a polyurethane cam ring. Different cam ring hardness ratings allow the damping ratio and the torsional stiffness to be varied.

Make an Enquiry

Add to wishlist

Share

Description
Product Details

Description

Vibration-damping and electrically insulating claw coupling
Nominal torque range from TKN = 0.5 Nm to 655 Nm with ten sizes
Temperature range: from –50 °C to +120 °C
Large variety of design options for maximum flexibility
Rotational speed: max. 47,500 rpm
Compensation for shaft misalignments
Low moment of inertia
Suitable for highly dynamic applications
Vibration-damping

Product Details

Reference BIPEX-S

Data sheet

Model: BIPEX-S
