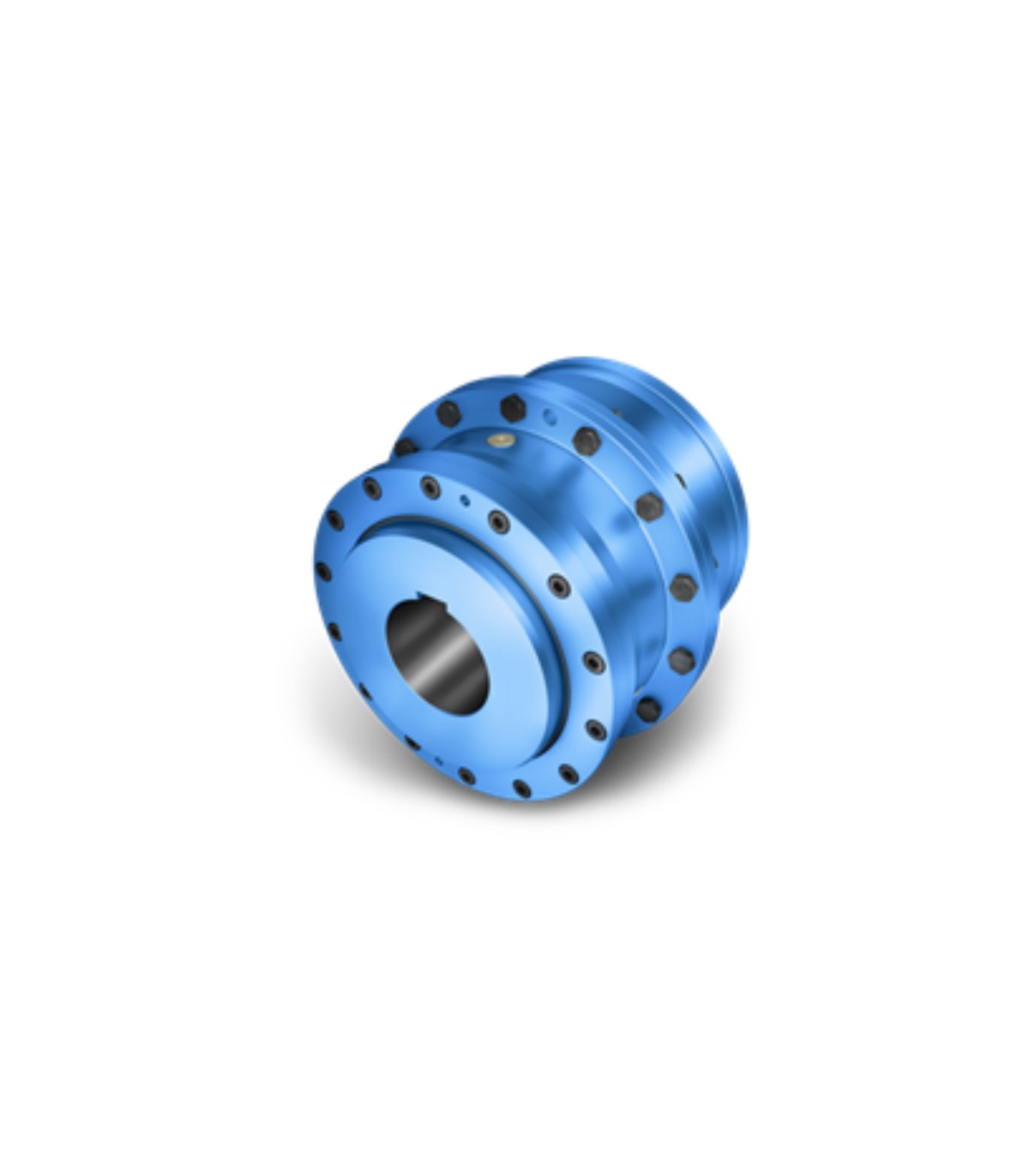

Flender Torsionally Rigid Coupling ZAPEX ZW Gear Coupling

Flender Torsionally Rigid Coupling ZAPEX ZW Gear Coupling

Brand:

Flender Torsionally Rigid Coupling ZAPEX ZW Gear Coupling

Brand:

Flender Highly Flexible Coupling ELPEX-S Rubber Disk Coupling

Flender Torsionally Rigid Coupling ZAPEX ZN Gear Coupling

Model: ZAPEX ZW

The double-jointed gear couplings from the ZAPEX ZW® series compensate for angular, parallel and axial misalignment of shafts. They are particularly suitable for use under rough operating conditions. In addition to the standard series, couplings up to 13,500,000 Nm can be supplied.

Make an Enquiry

Add to wishlist

Share

Description
Product Details

Description

Double-jointed gear coupling
Nominal torque range from TKN = 1,300 Nm up to 7,200,000 Nm with 31 sizes
Temperature range: from –20 °C to +80 °C
Low restoring forces in the case of shaft misalignment
Suitable for both directions of rotation (reversing operation) and vertical installation
Long service life and minimal maintenance requirements
Small dimensions owing to compact design for use in confined spaces
Can be used for high shock loads; with large safety reserves
Suitable for use in potentially explosive environments; certified according to 2014/34/EU (ATEX)

Product Details

Reference ZAPEX ZW

Data sheet

Model: ZAPEX ZW
