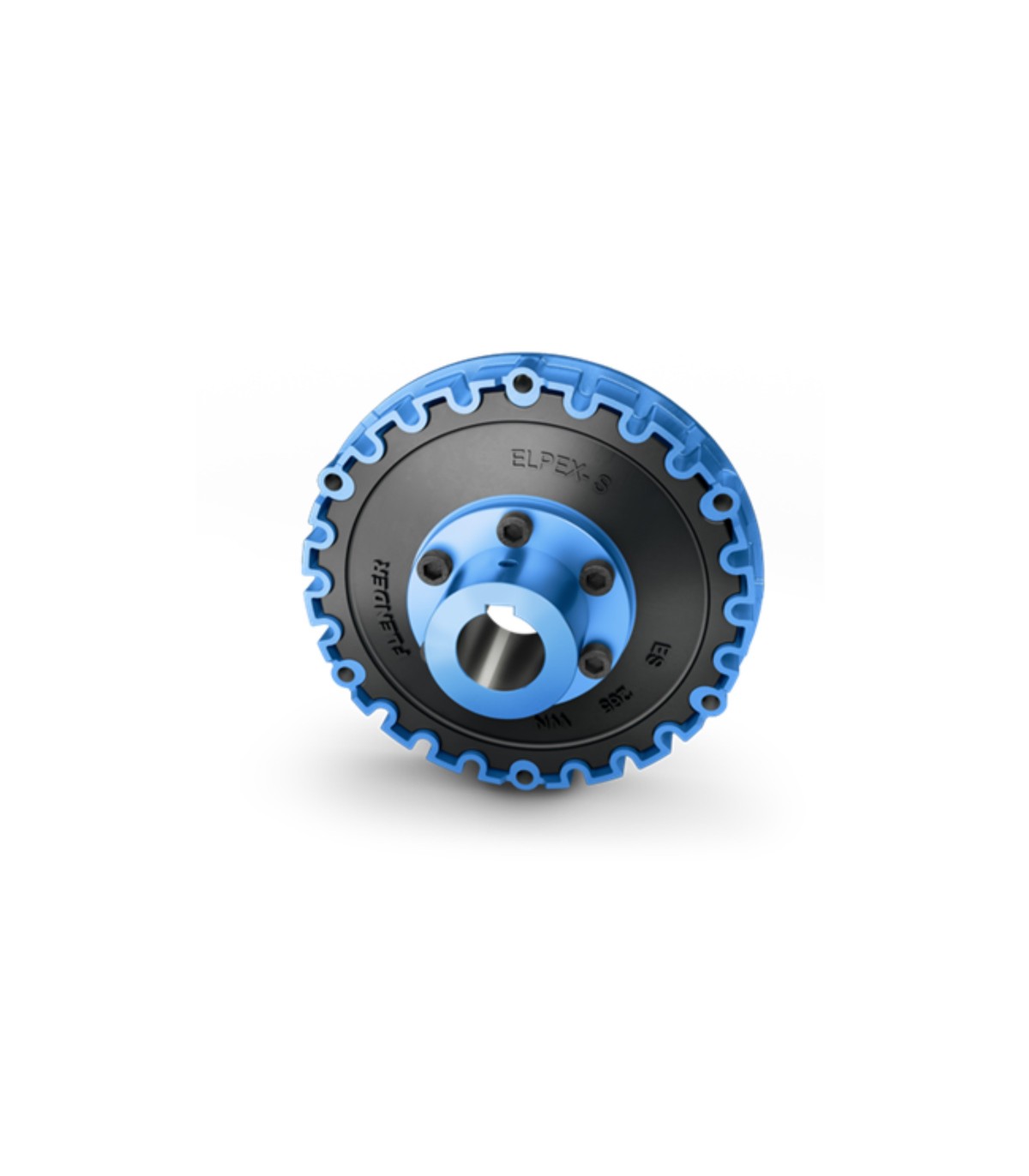

Flender Highly Flexible Coupling ELPEX-S Rubber Disk Coupling

Flender Highly Flexible Coupling ELPEX-S Rubber Disk Coupling

Brand:

Flender Highly Flexible Coupling ELPEX-S Rubber Disk Coupling

Brand:

Flender Highly Flexible Coupling ELPEX-B Rubber Tire Coupling

Flender Torsionally Rigid Coupling ZAPEX ZW Gear Coupling

Model: ELPEX-S

Owing to its low torsional rigidity and damping properties the ELPEX-S® coupling is very well suited to connecting machines with considerably non-uniform torque characteristics. The inside diameter of the rubber disk element is vulcanized on a flange. ELPEX-S couplings are designed as a flange/shaft connection or shaft/shaft connection as standard. The hub can take a taper bush.

Make an Enquiry

Add to wishlist

Share

Description
Product Details

Description

Highly flexible rubber disk coupling to connect machines with high torque fluctuations
Nominal torque range from TKN = 330 Nm up to 63,000 Nm with 17 sizes
Temperature range: from –40 °C to +120 °C
Insulates torsional vibrations with linear torsion spring characteristics
Many kinds of flange connection are possible (including SAE)
Easy plug-in assembly even for mounting positions that are difficult to access
Types are available where the rubber disk element can be replaced without the need to move the coupled machines
Overload protection for the motor and the driven machine
Suitable for use in potentially explosive environments; certified according to 2014/34/EU (ATEX)

Product Details

Reference ELPEX-S

Data sheet

Model: ELPEX-S
