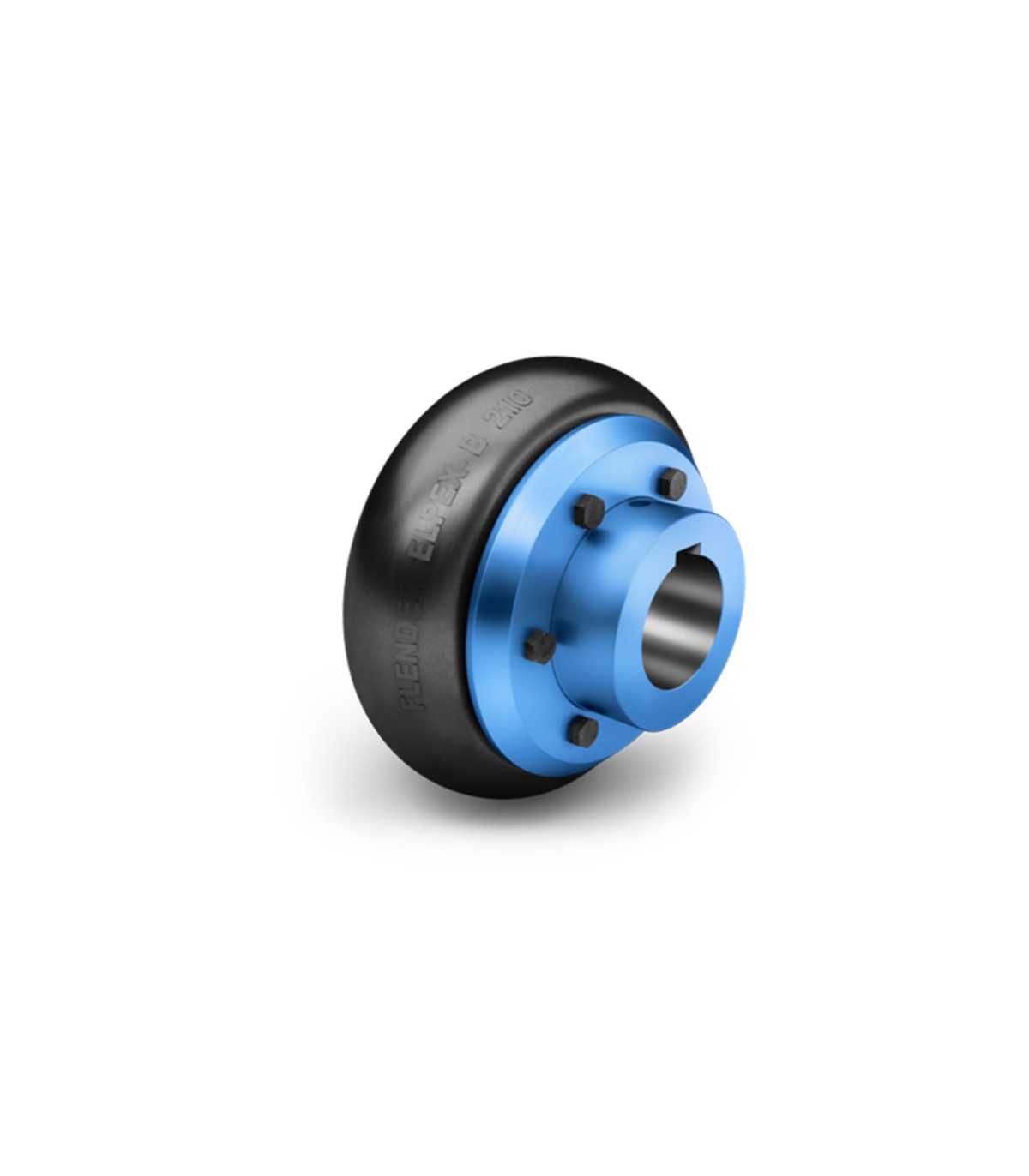

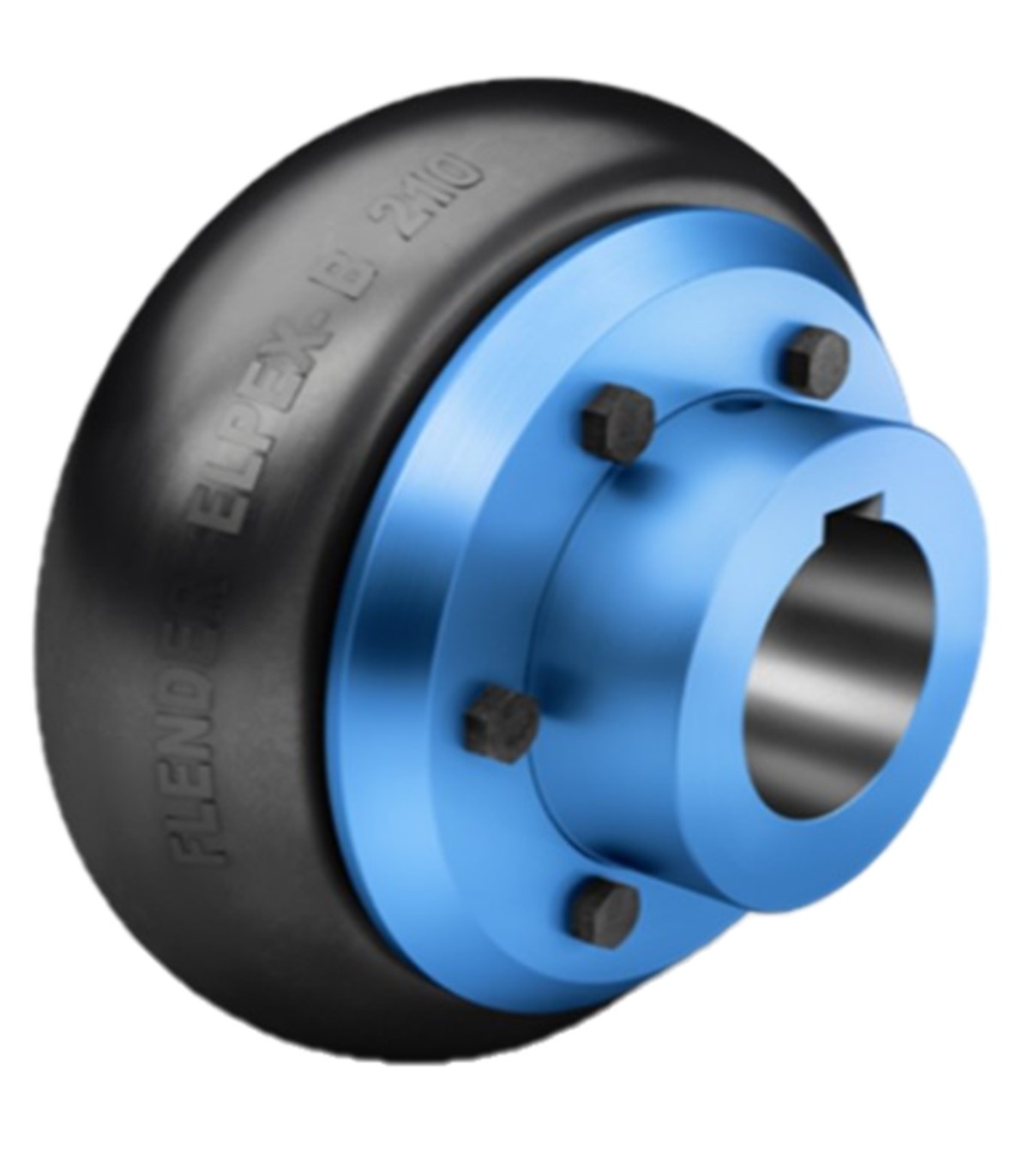

Flender Highly Flexible Coupling ELPEX-B Rubber Tire Coupling

Flender Highly Flexible Coupling ELPEX-B Rubber Tire Coupling

Brand:

Flender Highly Flexible Coupling ELPEX-B Rubber Tire Coupling

Brand:

Flender Highly Flexible Coupling ELPEX Elastic Ring Coupling

Flender Highly Flexible Coupling ELPEX-S Rubber Disk Coupling

Model: ELPEX-B

Highly flexible ELPEX-B® couplings transmit torques without circumferential backlash in machines with non-uniform torque characteristics. They are resistant to wear and maintenance-free. The hubs of the ELPEX-B couplings are made of high-quality cast iron or steel. The torque is transmitted by a flexible tire reinforced with a cord ply.

Make an Enquiry

Add to wishlist

Share

Description
Product Details

Description

Highly flexible, backlash-free tire coupling
Nominal torque range from TKN = 24 Nm up to 14,500 Nm with 15 sizes
Temperature range: from –50 °C to +50 °C for natural rubber materials, from –15 °C to +70 °C for chloroprene rubber
Compensation of very large shaft misalignments
Independent of direction of rotation (suitable for reversing operation)
The rubber tire can be replaced easily without the need to move the coupled machines
Easy mounting on the shafts is possible with taper bushes

Product Details

Reference ELPEX-B

Data sheet

Model: ELPEX-B

17 other products in the same category:

Flender Railway Coupling LBK Link Coupling

Flender

Flender Railway Coupling LBK Link Coupling

FLENDER LBK® connecting rod couplings have a split spacer and can be connected to the gear unit ultra-compactly. Radially arranged rubber elements create two hinge joints, which also make it possible to replace the...

Flender Railway Coupling MBG Membrane Coupling

Flender

Flender Railway Coupling MBG Membrane Coupling

FLENDER MBG® membrane couplings are two-part, torsionally rigid all-steel couplings with excellent concentricity and outstanding balance quality because they are balanced together with the motor rotor. The...

Flender Highly Flexible Coupling ELPEX-S Rubber Disk Coupling

Flender

Flender Highly Flexible Coupling ELPEX-S Rubber Disk Coupling

Owing to its low torsional rigidity and damping properties the ELPEX-S® coupling is very well suited to connecting machines with considerably non-uniform torque characteristics. The inside diameter of the rubber disk...

Flender Hydrodynamic Coupling FLUDEX Fluid Coupling

Flender

Flender Hydrodynamic Coupling FLUDEX Fluid Coupling

Fluid couplings operate according to the Föttinger principle. The coupling parts on the input and output side are not mechanically connected and are therefore wear-free. The torque is transmitted by the fluid movement...

Flender Backlash-Free Coupling SIPEX Metal Below Coupling

Flender

Flender Backlash-Free Coupling SIPEX Metal Below Coupling

The SIPEX coupling is made up of two aluminum hubs and stainless steel bellows. Its metal bellows compensate for axial, radial and angular misalignments with only low restoring forces.

Flender Railway Coupling GKG Cardan Joint Coupling

Flender

Flender Railway Coupling GKG Cardan Joint Coupling

FLENDER GKG® cardan couplings are elastic, double-jointed output couplings used to compensate for primary suspension misalignments in the bogie with full torque transmission between the gear unit and the powered wheel...

Flender Railway Coupling ZBG Gear Coupling

Flender

Flender Railway Coupling ZBG Gear Coupling

Grease-lubricated FLENDER ZBG® gear couplings make the best-possible contribution to safeguarding the maximum availability of your rail vehicle. Millions of kilometers of track, icy Siberian temperatures, extreme...

Flender Torsionally Rigid Coupling ZAPEX ZW Gear Coupling

Flender

Flender Torsionally Rigid Coupling ZAPEX ZW Gear Coupling

The double-jointed gear couplings from the ZAPEX ZW® series compensate for angular, parallel and axial misalignment of shafts. They are particularly suitable for use under rough operating conditions. In addition to...

Flender Torsionally Rigid Coupling ARPEX ART Turbo Coupling

Flender

Flender Torsionally Rigid Coupling ARPEX ART Turbo Coupling

ARPEX ART® high performance couplings consist of pure expertise combined with the greatest possible power density. They are used in all high-speed drive systems that require torque transfer where shaft misalignment is...

Flender Flexible Coupling N-EUPEX Pin Coupling

Flender

Flender Flexible Coupling N-EUPEX Pin Coupling

Due to their torsional flexibility, N-EUPEX® couplings can move critical torsional vibrations away from the operating area of mechanical equipment in such a way that no negative effects on the drive train are to be...

Flender Flexible Coupling N-BIPEX Craw Coupling

Flender

Flender Flexible Coupling N-BIPEX Craw Coupling

N-BIPEX allows greater freedom when designing the cam geometry, thereby laying the foundation for the innovative curved design. Unlike the milled cams typically available on the market, this design results in uniform...

Flender Torsionally Rigid Coupling ZAPEX ZN Gear Coupling

Flender

Flender Torsionally Rigid Coupling ZAPEX ZN Gear Coupling

ZAPEX ZN® couplings connect machine shafts and compensate for angular and radial misalignment. ZAPEX gear couplings from the ZN series are made of high-quality quenched and tempered steel and are manufactured...

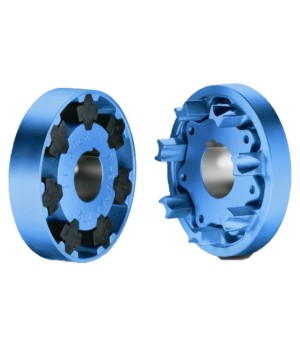

Flender Flexible Coupling N-EUPEX DS Pin Coupling
