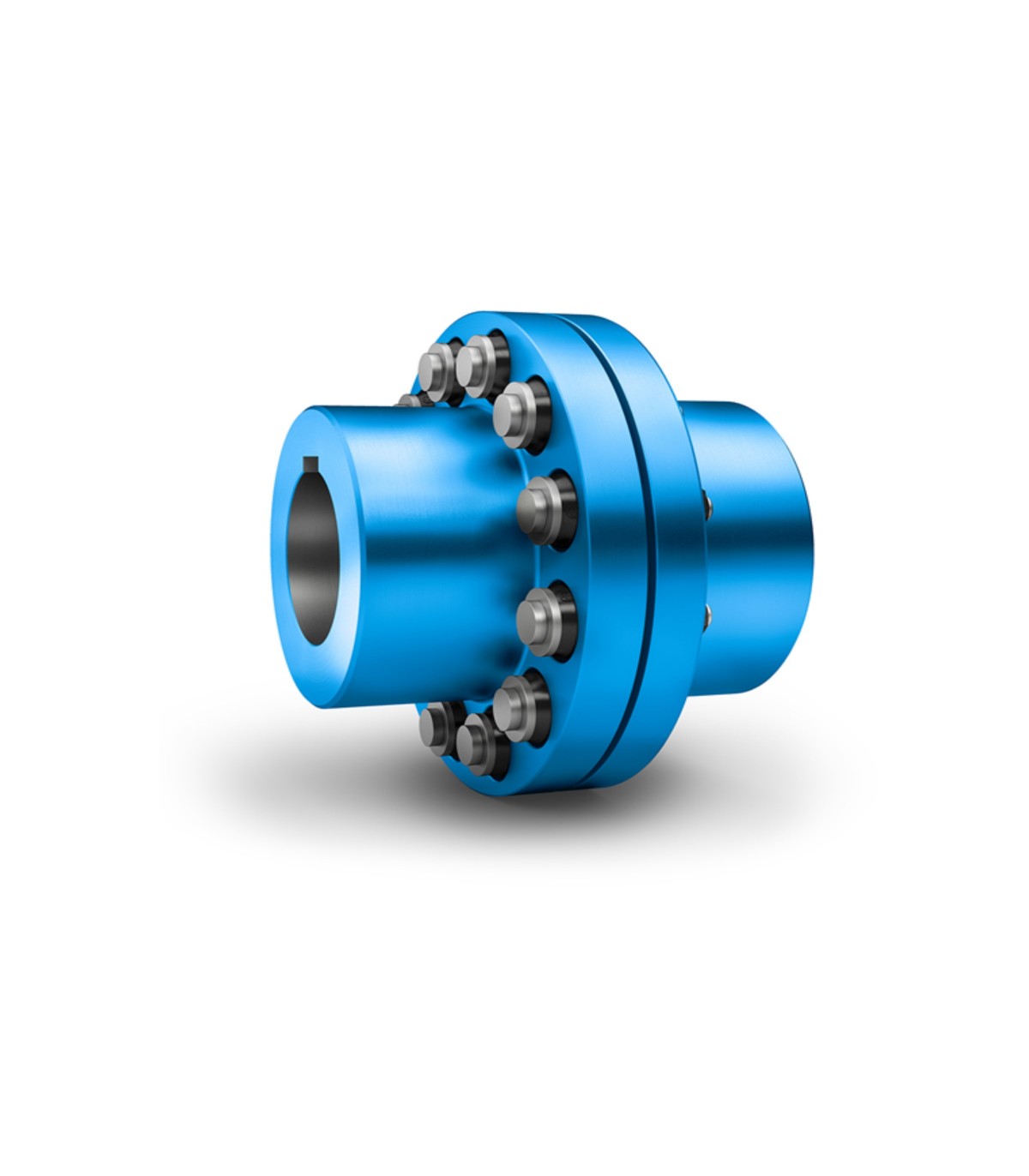

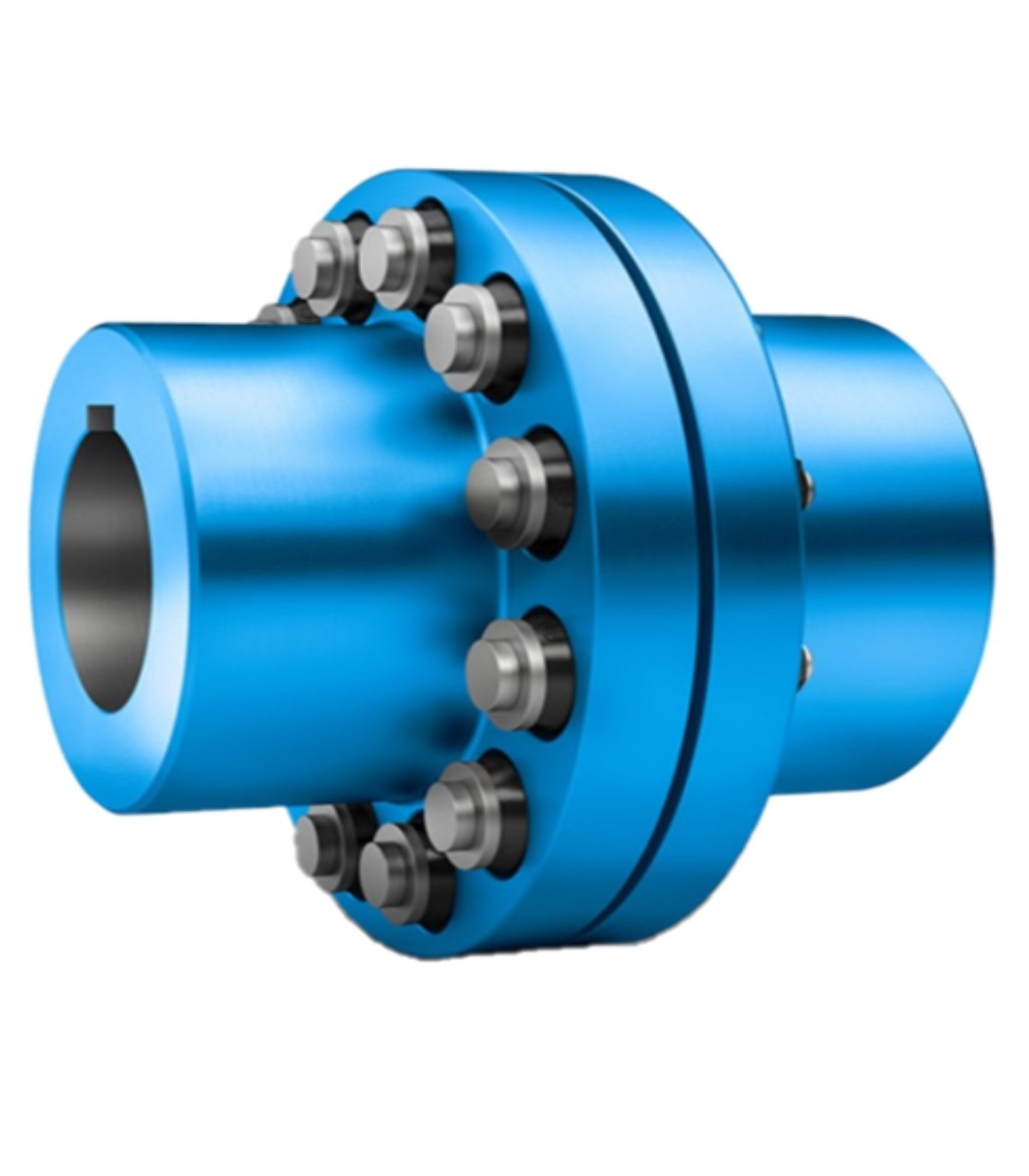

Flender Flexible Coupling RUPEX Pin & Brush Coupling

Flender Flexible Coupling RUPEX Pin & Brush Coupling

Brand:

Flender Flexible Coupling RUPEX Pin & Brush Coupling

Brand:

Flender Flexible Coupling N-EUPEX DS Pin Coupling

Flender Flexible Coupling N-BIPEX Craw Coupling

Model: RUPEX

RUPEX® couplings are used as flexible compensating couplings in all applications requiring a reliable transmission of torque under harsh operating conditions. The conical seats of the buffer pins facilitate mounting and guarantee maintenance-free operation. The optimized shape of the barreled buffers allows simple plug-in assembly and low circumferential backlash. Many type variants are offered, e.g., with brake disk, axial play limiting device or brake motor couplings.

Make an Enquiry

Add to wishlist

Share

Description
Product Details

Description

Damping, fail-safe pin and bush coupling for medium and higher torques
Nominal torque range from TKN = 200 Nm up to 1,690,000 Nm with 26 sizes
Temperature range: from –50 °C to +100 °C
Compact design; low weights and mass moments of inertia
Independent of direction of rotation (suitable for reversing operation)
Suitable for plug-in assembly (blind assembly, bell housing installation)
Suitable for use in potentially explosive environments; certified according to 2014/34/EU (ATEX)

Product Details

Reference RUPEX

Data sheet

Model: RUPEX
