Brand:

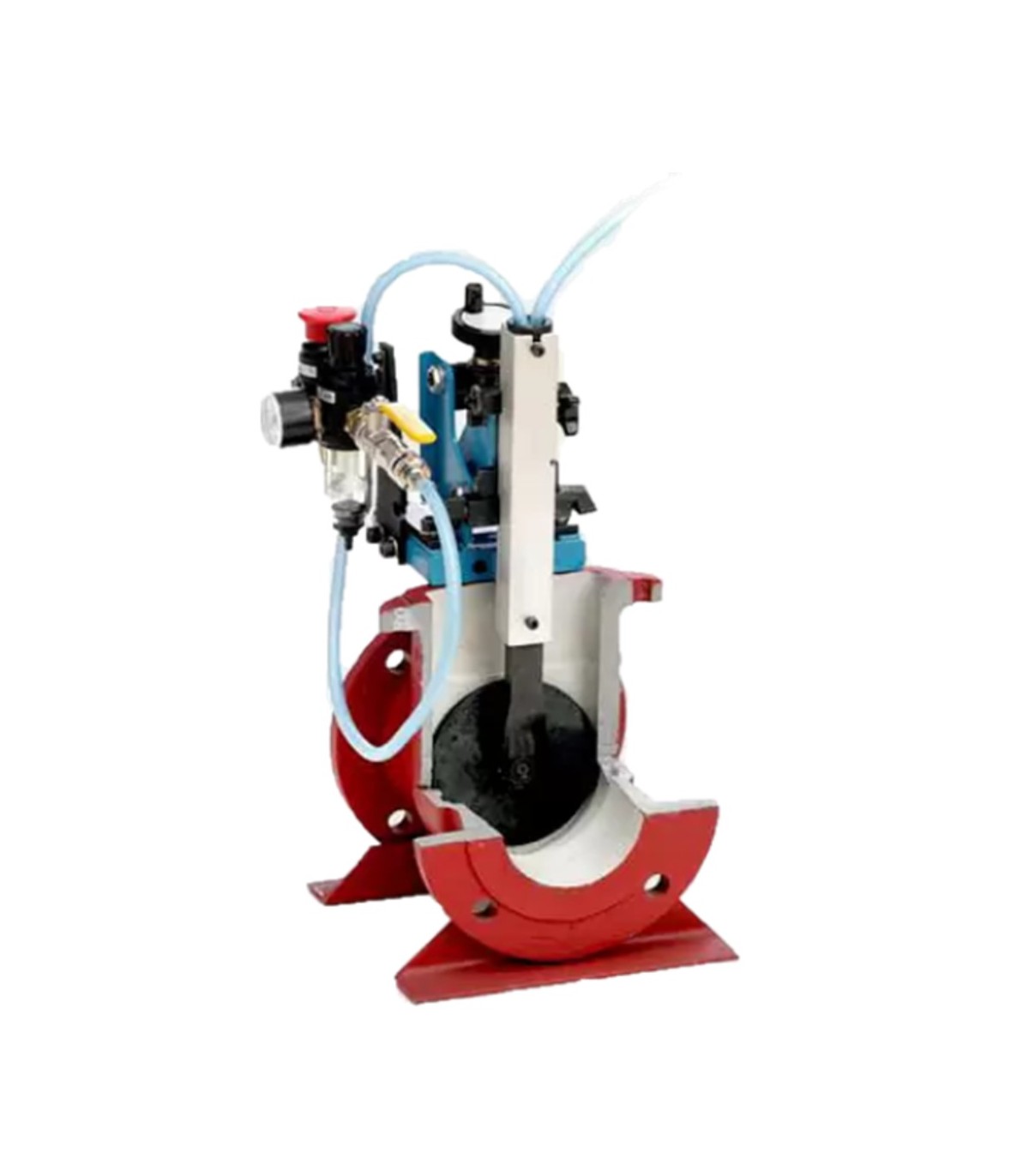

LarsLap® Valve Grinding Equipment Model S
Brand:
Model:
Model S
The LarsLap® Valve Grinding Equipment Model S is the ideal tool for reconditioning valves in industrial applications. It provides precision grinding to a flat finish, allowing for smooth and efficient valve operation. It is a reliable, cost effective option for keeping your valves in top condition.
Add to wishlist
Ideal for gate and parallel slide valves, discs and wedges.

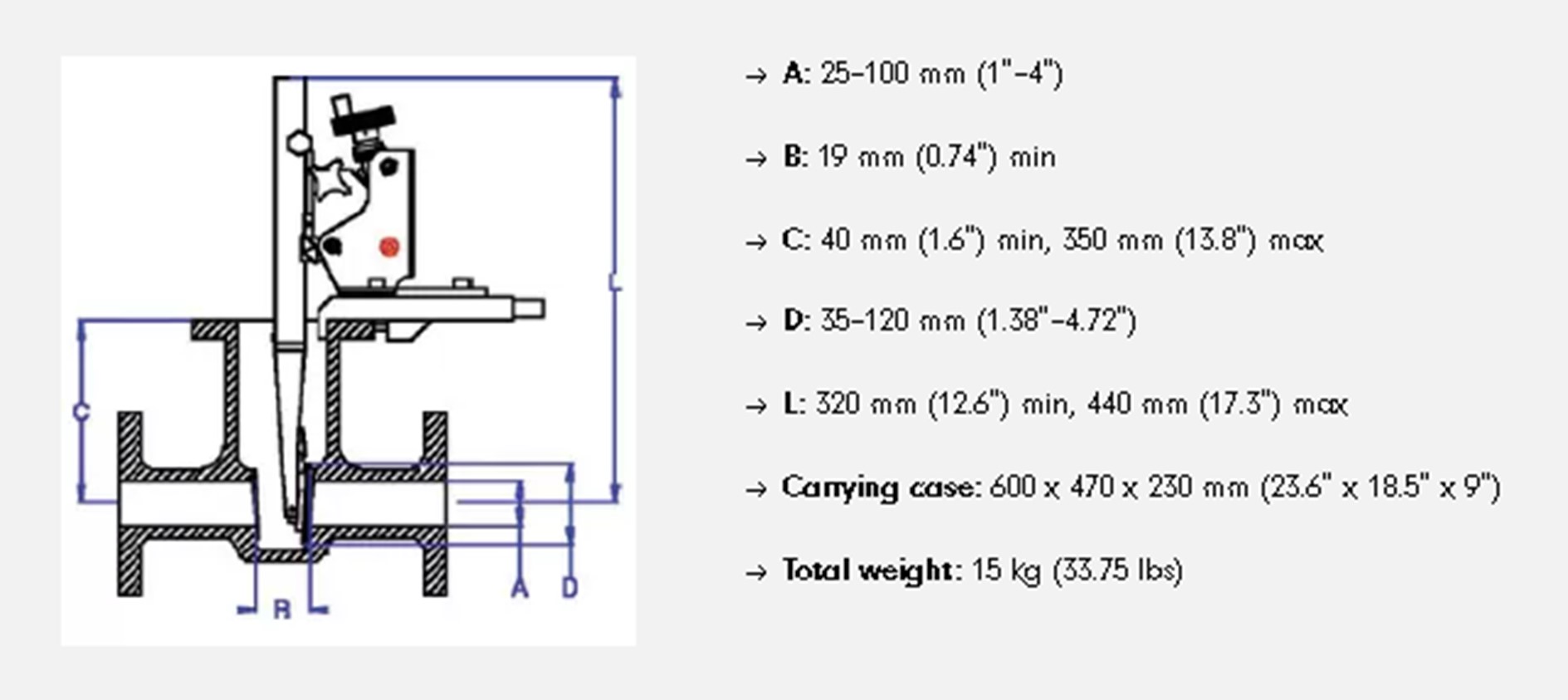

- Suitable for valves with flat seats 25-100mm (1"- 4")
- 3° angle grinding plates as standard
- Air drive unit standard 6-7 bar
- Electric drive unit available
- Variable grinding speed on all drive units
- Supplied with a mounting plate for grinding discs and wedges
- Only three sizes of abrasive discs required for full seat size range
- Self-adhesive grinding discs for quick attachment to the grinding heads
- Supplied with rough, medium and fine grinding discs
- Heavy duty carrying/storage case for the complete machine with all the necessary accessories
- Self-adhesive grinding discs 40 to 1000 grit available
- Diamond grinding discs available
