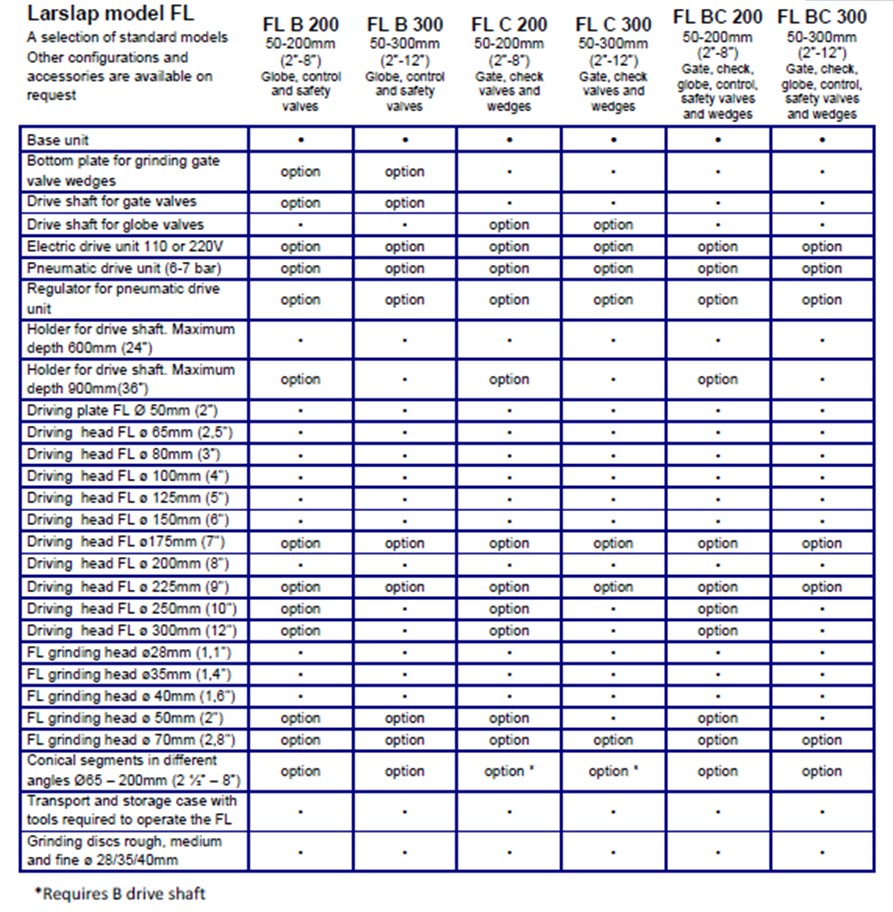

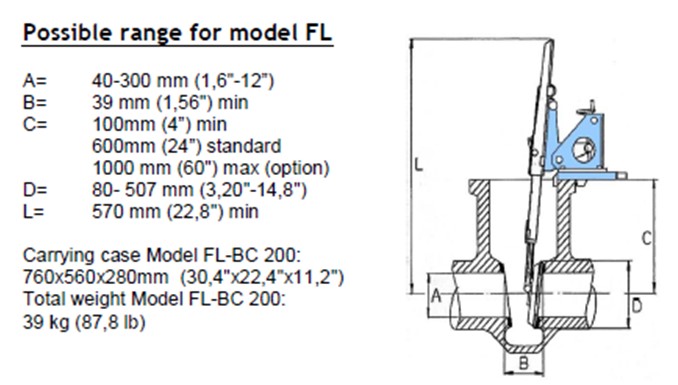

LarsLap® Valve Grinding Equipment Model FL

A midrange portable machine for gate, parallel slide, globe, check, safety and control valves, discs and wedges.

• Suitable for valves with flat Seats ø 50 – 300 mm (2” – 12”)
• Individually driven grinding heads for perfectly flat seats
• Gives you an absolutely flat sealing surface
• Air drive unit as standard 6 – 7 bar
• Electric drive unit available
• Variable grinding speed on all drive units
• Supplied with a mounting plate for grinding discs and wedges
• Self-adhesive grinding discs for quick attachment to the grinding heads
• Supplied with rough, medium and fine grinding discs

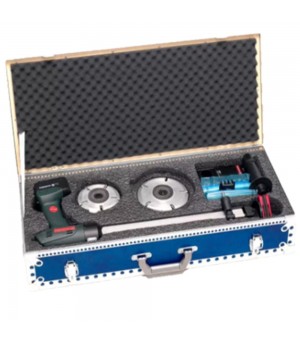

• Heavy duty carrying/storage case for the complete machine with all the necessary accessories
• Extended grinding heads available
• Very thin section driving heads available
• Grinding heads for angled seats available

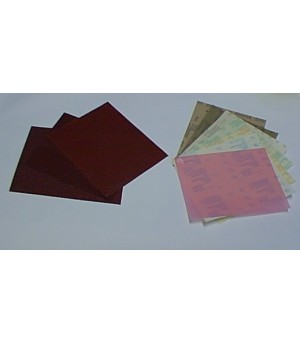

• Self-adhesive grinding discs 40 to 1000 grit available
• Diamond grinding discs available
