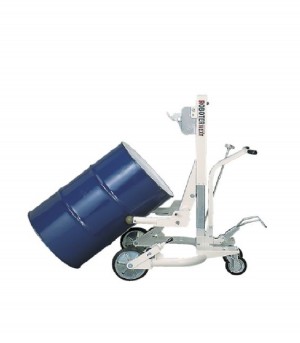

Taiyu Drum Carrier RX-5

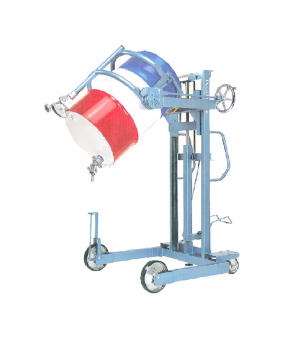

Taiyu Drum Dumper DM-1100-S
Model: RX-K

Drum carrier is a mechanical equipment that is used to handle and transport cylindrical module such as metal drums and plastic drums. It has spring-loaded metal arms for a tight and secure grip.

Make an Enquiry
Add to wishlist
Share
Description

Conveyance of Polyethylene Drums

- Just press the Kuwagata (antlers) against a drum, then lift. Chucks grab automatically. The chucks release their grip automatically after the drum touches down again

- The antlers can grip drums with a rim neck diameter from 470 to 570mm. Simply adjust the position of the chuck grip and it's ready to use.

Product Details
RX-K

Data sheet

Model
RX-K
Capacity
300 kg
Lift stroke
430 mm
Length
1090 mm
Width
890 mm
Height
1040 mm
Chuck Height
710 - 1220 mm
Front wheels
ø250mm rubber x 2
Rear wheels
ø150 mm rubber x 2
Net Weight
83 kg
Distance between front wheels
650 mm
Lift per pedal press
17 mm
Pedal operating force
25 kg
Chuck diameter
ø470 - 570 mm
Overall protrusion of drum rim neck
7mm or greater
20 other products in the same category:

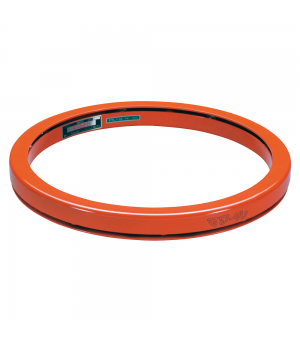

Taiyu Turn Table Mawaru Pallet Turn PTL-100
Taiyu

Working would be easier if you could change the direction of a loaded pallet. This pallet turning ring makes it possible! Weighing only about 15 kg, it can be taken anywhere and used to turn the pallet to face in any...
View Details
Taiyu Turn Table Luluman SB-140
Taiyu

Luluman can be used slightly differently from Pallet Turn. Luluman can be incorporated into machinery as a substitute for bearings, used vertically, or adapted for other tasks which Pallet Turn cannot handle.
View Details

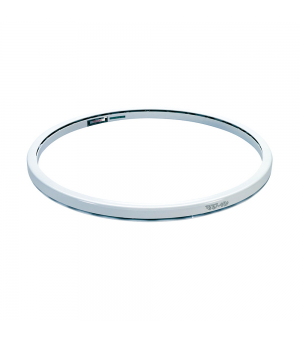

Taiyu Turn Table Mawaru Pallet Turn PTH-160
Taiyu

Working would be easier if you could change the direction of a loaded pallet. This pallet turning ring makes it possible! Weighing only about 15 kg, it can be taken anywhere and used to turn the pallet to face in any...
View Details
Taiyu Drum Carrier RC-02
Taiyu

Drum carrier is a mechanical equipment that is used to handle and transport cylindrical module such as metal drums and plastic drums. It has spring-loaded metal arms for a tight and secure grip.
View Details

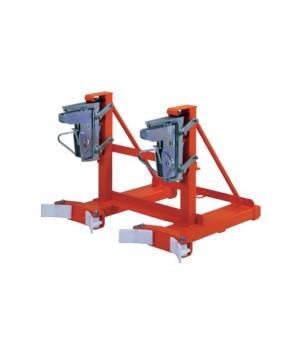

Taiyu Drum Carrier CA-N2-S
Taiyu

It’s a type of drum handler that is designed to easily slide into a forklift truck. This type of drum handler is used to efficiently and safely load and unload different sizes and types of drums. Once inserted into...
View Details
Taiyu Turn Table Mawaru Pallet Turn PTH-120
Taiyu

Working would be easier if you could change the direction of a loaded pallet. This pallet turning ring makes it possible! Weighing only about 15 kg, it can be taken anywhere and used to turn the pallet to face in any...
View Details
Taiyu Turn Table Mawaru Pallet Turn MR-45
Taiyu

Working would be easier if you could change the direction of a loaded pallet. This pallet turning ring makes it possible! Weighing only about 15 kg, it can be taken anywhere and used to turn the pallet to face in any...
View Details
Taiyu Turn Table Mawaru Pallet Turn PTL-80
Taiyu

Working would be easier if you could change the direction of a loaded pallet. This pallet turning ring makes it possible! Weighing only about 15 kg, it can be taken anywhere and used to turn the pallet to face in any...
View Details
Taiyu Turn Table Luluman SB-60
Taiyu

Luluman can be used slightly differently from Pallet Turn. Luluman can be incorporated into machinery as a substitute for bearings, used vertically, or adapted for other tasks which Pallet Turn cannot handle.
View Details
Taiyu Turn Table Mawaru Pallet Turn PTH-100
Taiyu

Working would be easier if you could change the direction of a loaded pallet. This pallet turning ring makes it possible! Weighing only about 15 kg, it can be taken anywhere and used to turn the pallet to face in any...
View Details
Taiyu Turn Table Mawaru Pallet Turn PTM-100
Taiyu

Working would be easier if you could change the direction of a loaded pallet. This pallet turning ring makes it possible! Weighing only about 15 kg, it can be taken anywhere and used to turn the pallet to face in any...
View Details
Taiyu Turn Table Mawaru Pallet Turn MR-30
Taiyu

Working would be easier if you could change the direction of a loaded pallet. This pallet turning ring makes it possible! Weighing only about 15 kg, it can be taken anywhere and used to turn the pallet to face in any...
View Details
Taiyu Turn Table Mawaru Pallet Turn PTL-135
Taiyu

Working would be easier if you could change the direction of a loaded pallet. This pallet turning ring makes it possible! Weighing only about 15 kg, it can be taken anywhere and used to turn the pallet to face in any...
View Details
Taiyu Turn Table Mawaru Pallet Turn PTM-80
Taiyu

Working would be easier if you could change the direction of a loaded pallet. This pallet turning ring makes it possible! Weighing only about 15 kg, it can be taken anywhere and used to turn the pallet to face in any...
View Details
Taiyu Turn Table Mawaru Pallet Turn MR-45P
Taiyu

Working would be easier if you could change the direction of a loaded pallet. This pallet turning ring makes it possible! Weighing only about 15 kg, it can be taken anywhere and used to turn the pallet to face in any...
View Details

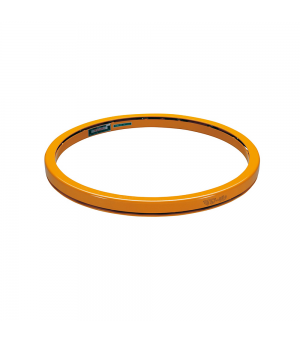

Taiyu Turn Table Mawaru Pallet Turn PTM-120
Taiyu

Working would be easier if you could change the direction of a loaded pallet. This pallet turning ring makes it possible! Weighing only about 15 kg, it can be taken anywhere and used to turn the pallet to face in any...
View Details
Taiyu Turn Table Mawaru Pallet Turn PTE-100
Taiyu

Working would be easier if you could change the direction of a loaded pallet. This pallet turning ring makes it possible! Weighing only about 15 kg, it can be taken anywhere and used to turn the pallet to face in any...
View Details

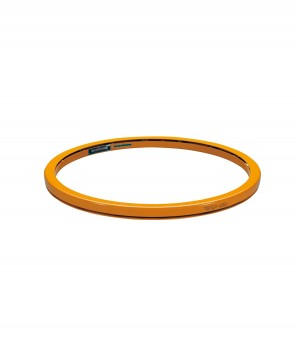

Taiyu Turn Table Mawaru Pallet Turn PTM-60
